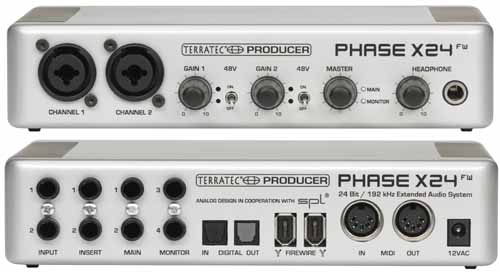

larger size FRONT
larger size REAR
PHASE 24 FW features a range of connection options and sophisticated FireWire technology housed in a stand-alone aluminum chassis, sports two analog inputs (line, hi-Z or mic in with 48V phantom power), four outputs, digital I/O, MIDI I/O, insert jacks and gain knobs.The package includes Steinberg´s Cubase LE workstation software with 48 audio tracks, WaveLab lite 2.5 and Native Instruments Traktor DJ software.
The two combination jacks on the front panel of the external housing accept 6.3 mm (1/4") jack plugs for instruments such as electric guitars and basses, as well as XLR connectors for microphones. Equipped with status and clip LEDs, these inputs' levels are individually adjustable using two dedicated gain knobs. On demand, 48-volt phantom power can be assigned separately to each channel.
With four line outs (two main and two monitor each), the PHASE X 24 FW's signals are sent to outboard devices. 24-bit /192-kHz signal processing and 111 dB signal-to-noise ratio.
Two front-panel inserts accommodate external effectors, for instance, compressors and other signal processors.
An adjustable headphones output, a digital interface (optical) for S/PDIF, AC3 and DTS formats, and a MIDI I/O round out the range of connection options. All cords and adapters required to connect the device are included.
TerraTec Producer´s PHASE X24 FW comes ready-to-go with Steinberg´s Cubase LE for Mac and PC, the PC version of WaveLab lite and NI´s Traktor DJ for PC. Cubase LE is based on Steinbergs Cubase SX technology featuring 48 audio tracks, VST plugIns and full VST support. Cubase LE can easily be upgraded to an even more powerful version like Cubase SX3. In addition, Cubase LE is VST system link and ReWire 2 compatible.
* FireWire audio system
* 2 microphone/instrument inputs (XLR combo jacks)
* Analog design developed jointly with SPL®
* Individually assignable 48V phantom power
* 2 gain knobs
* 2 analog inputs (balanced 6.3 mm (1/4") jacks)
* 2 inserts (stereo 6.3 mm (1/4") jacks)
* 4 analog outputs (balanced 6.3 mm (1/4") jacks)
* 1 optical digital I/O
* 1 MIDI I/O
* Digital hardware mixer
* 24-bit / 192-kHz analog signal processing
* 24-bit / 96-kHz digital signal processing
* 109 dB signal-to-noise ratio, analog inputs (A-weighted)
* 111 dB signal-to-noise ratio, analog outputs (A-weighted)
