FUTURE STYLE

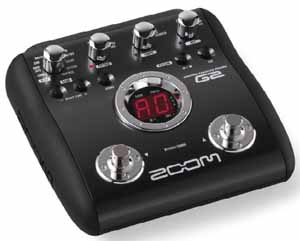

Zoom G2
Multi-FX Pedal with built-in PCM drum machine






euro 100,00



96 kHz sampling
24 bit A/D/A conversion
New Zoom ZFX-3 DSP chip
32-bit processing
20Hz – 40kHz flat responce
120 dB SNR
16 Classic Amp & Stomp Box Models
9 effect modules
54 effect types
40 user patches + 40 factory patches
6 bands EQ


G2 features 96kHz sampling rate and 24-bit converters, plus up to 5 second of delay, built-in tuner, and drum machine. G2 boasts 32-bit processing, 96kHz sampling rate, and 24-Bit A/D, D/A converters.

The G2 digitally simulates the harmonic clipping of analog devices such as tubes and diodes of tube amps and vintage effects. A total of nine effects modules are included, including dynamics, ambience, drive, and modulation. Together they offer 54 types of effects. Use long delays or multi-tap delay of up to 5000 milliseconds. Select dynamic flanger and have the effect level controlled by picking intensity. Select from three types of modulation waveforms for the tremolo. Touch up the harmonic register with the six-band equalizer. The cabinet simulator even gives a choice of mic positions.

With a 96kHz sampling rate, the warmth of a tube amp or the nuance of a vintage effect can be more accurately rendered. The 24-bit A/D, D/A conversion allows for plenty of dynamic range.
The unit comes preprogrammed with a total of 40 preset effects patches, and memory space for 40 of your own creations. And when it comes times to change patches, that annoying delay when switching has been virtually eliminated. The G2 can change patches in 0.005 seconds according to the company.

Also included in the G2 is a drum machines with 40 rhythm variations built-in. The tempo can be set with the tap tempo button, or with a footswitch (sold separately).

Like every Zoom pedal, the G2 has an integrated chromatic tuner built-in. The G2 runs on 4 AA batteries, or the included AC power adapter. An external footswitch and external expression pedal are also available to explore you performance capabilities.



G2 SPECIFICATIONS

:::: Effect Types: 54 :::: Effect Modules: 9 :::: Maximum Simultaneous Effects: 9 :::: Patch Memory: User 40+Preset 40, Total 80 :::: Sampling Frequency: 96kHz :::: A/D Conversion: 24bit, 64times over-sampling :::: D/A Conversion: 24bit, 128times over-sampling :::: Input: 1/4" phone jack(Rated input level: -20dBm, Input impedance: 1MΩ) :::: Output(Line / headphones combined): 1/4" stereo phone jack(Maximum output level: +5dBm, Output load impedance: 10kΩ or higher) :::: Control Input: Expression pedal, Foot switch :::: Display: 2digit 7segment LED display, Parameter LED :::: Power Requirements: AA size(LR6)battery x 4(Optional), or AC adaptor DC9V/300mA/Center minus type(Optional, AD-0006 recommended) :::: Battery Life: 7.5hours(with alkaline batteries) :::: Dimensions: 156(W) x162(D) x 65(H)mm :::: Weight: 700g(without batteries) :::: Optional Accessories: FP02(Expression pedal), FS01(Foot switch), AD-0006(AC adaptor), AA size batteries

*0dBm=0.775Vrms
