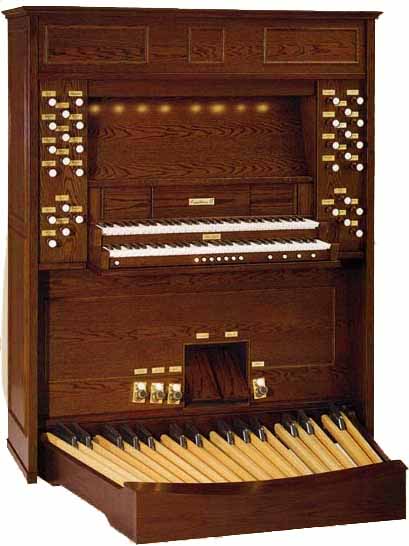

 euro 14.200,00 LITURGICAL ORGAN Technical Specifications Two 61 notes Manuals (special liturgical keyboard) 32 notes Pedalboard (straight, straight concave, radiating concave) Lighted wooden drawknobs Coupler drawstops: I/P - II/P - II/I Pedals: Man. II - Crescendo Connections: Headphones - Input L (Mono)/R - Output: L (Mono)/R - Midi In, Out and Thru - Pitch General - Pitch Pedal - Pitch Swell 6 General Memories A.P. ( Automatic Pedal ) Cancel - Set - Encl. Tutti Foot Pistons ( I/P - II/P - II/I - Tutti ) Control panel: (40x2 LCD display): Tab, Midi, Tremulant, Reverb., Setting, Page +/-, Cursor +/-, Exit Rear panel: 2 x VDC 12 V. Main Out: Swell L (+R)R - Great L (+R)R - Pedal L (+R)R - Antiphonal 1 (+2) - 2 - 3 (+4) - 4 - Input L (+R)R Amplifiers: 3 x 80 W. Loudspeakers: 1 Woofer - 2 Mid Range and 2 Tweeters Cabinet and accessories: wood veneered matt polished in dark oak with wooden music rest and matching bench. Dimensions: Height cm. 170 - Width cm. 137 - Depth cm. 64 - Depth with Pedal cm. 100 Weight: Organ kg. 170 - Bench kg. 20 - 30 N. Pedalboard kg. 28 - 32 N. Pedalboard kg. 37
|
|
|
