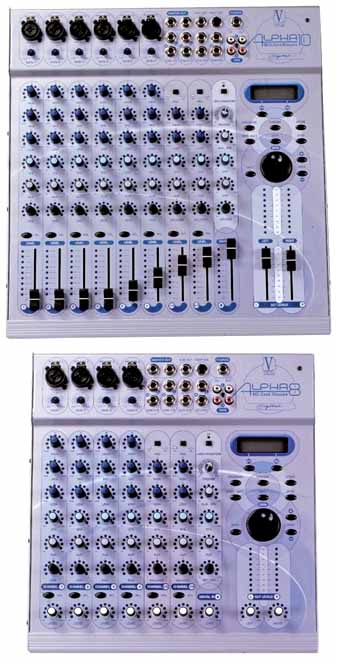

Alpha 10 , Alpha 8 Digital Mixers  Digital Mixers in a simple and easy to use configuration, as in a traditional analog console. Aplpha 10 euro 1.080,00 Aplpha 8 euro 790,00 Due to the ergonomic human interface, anyone who used a mixer, even once in a lifetime, will be able to fully use all Alpha capabilities, where there is no complicated sections or virtual channels. All main functions are triggered with direct dedicated pot action, allowing a quick and natural operation. All the digital world features are of course maintained: 256 configuration presets, parametric eq, dynamic processors such as compressors and gates, independent effects, digital out and so on… Alpha 10 Hardware Input channels ........................................................... 6 Mic./Line mono inputs (XLR-jack combo connector ) 2 stereo inputs (3” 1/4 Jack ) with L/Mono function Digital input - Tape input (stereo) - Return (stereo) Outputs ...................................................................... Main L/R - Xover mono out (with C/R function) Digital output - Tape output - Send - Auxiliary Stereo headphones (with selectable source) Others........................................................................ Foot switch - Midi In/Out/Thru - AC power input Control Panel ............................................................. Graphic LCD 122*32 pixel Back lit - Encoder - 2 function Keys - 6 mode keys - Page and Shift keys Channel controls ....................................................... True-Analog Feel interface, featuring a complete control-Bar on each input channel, created using encoders and fader Both equipped with position LEDs (9 each control, 54 each channel) Master controls .......................................................... Master level, Master Aux, Efx’s, Return and Efx to Aux All controls have been realized using the True-Analog Feel Interface: 2 Faders, 6 encoders with 9 position LEDs eac Alpha 8 Hardware Input channels ........................................................... 4 Mic./Line mono inputs (XLR-jack combo connector ) 2 stereo inputs (3” 1/4 Jack ) with L/Mono function Digital input - Tape input (stereo) - Return (stereo) Outputs ...................................................................... Main L/R - Xover mono out (with C/R function) Digital output - Tape output - Send - Auxiliary Stereo headphones (with selectable source) Others........................................................................ Foot switch - Midi In/Out/Thru - AC power input Control Panel ............................................................. Graphic LCD 122*32 pixel Back lit - Encoder - 2 function Keys - 6 mode keys - Page and Shift keys Channel controls ....................................................... True-Analog Feel interface, featuring a complete control-Bar on each input channel, created using encoders with position LEDs (9 each control, 54 each channel) Master controls .......................................................... Master level, Master Aux, Efx’s, Return and Efx to Aux All controls have been realized using the True-Analog Feel Interface: 8 encoders with 9 Position LEDs each VU Meter Both Equalizars Mono channels........................................................... High Frequency Freq from 500 to 17.950 Hz , B/C =+/- 15dB Mid Frequency (Parametric) Freq from 220 to 8.000 Hz , B/C =+/- 15dB , Q = 0.6 to 10 Low Frequency Freq from 50 to 2.000 Hz , B/C =+/- 15dB Stereo channels ........................................................ High Frequency Freq from 500 to 17.950 Hz , B/C =+/- 15dB Low Frequency Freq from 50 to 2.000 Hz , B/C =+/- 15dB Master........................................................................ 7 bands Graphic Equalizer B/C =+/- 15dB Settings...................................................................... Each setting can be stored for each channel / program Effects Mono channels .......................................................... Compressor and Gates Noise Gate, Compressor, Limiter Modulation Chorus, Flanger, Phaser Reverb (send) Delay (send) Stereo channels......................................................... Compressor and Gates Noise Gate Reverb (send) Delay (send) Master........................................................................ Reverb Delay Settings...................................................................... Each setting can be stored for each channel / program Effect Libraries Compressor and Gates .............................................. Noise gate = 10 user programs Compressor = 40 user programs Limiter = 10 user programs Modulations ............................................................... Chorus = 20 user programs Flanger = 20 user programs Phaser = 20 user programs Reverb & Delay .......................................................... Reverb = 40 user programs Delay = 40 user program Effect Parameters Compressor and Gates .............................................. Noise gate = Reduction, Threshold, Attack, Release Compressor = Ratio, Threshold, Attack, Release Limiter = Threshold, Attack, Release Modulations ............................................................... Chorus = Rate, Depth, PreDelay Flanger =Rate, Depth, Feedback Phaser = Rate, Depth, Feedback, Damp Reverb & Delay .......................................................... Reverb = Size, Time, Diffusion, Hi-Damp Delay (L & R)= Time, Feedback, X-Feedback- Damp X-over Frequency.................................................................. From 50 to 400 Hz Slope.......................................................................... 6, 12, 18,24 dB/Oct Phase......................................................................... Positive - Negative Digital I/O Format ....................................................................... Stabndard S-PDIF Input........................................................................... From 32 up to 192 Khz Indipendent level Output........................................................................ 48 Khz - Indipendent level Other settings Mono channels........................................................... Aux pre/post fader Exf pre/ post fader , Efx control target Channel Coupler Stereo channels ......................................................... Aux pre/post fader Exf pre/ post fader , Efx control target Master........................................................................ Phones Take, Panic function, Master Eq and level safe mode Remark ...................................................................... Each setting can be stored for each channel / program User Programs User programs ...........................................................256 units Midi Bulk Dump function provided...............................Yes
|
|
|
advanced technologic sound magazine 2005 July issue 139
|
