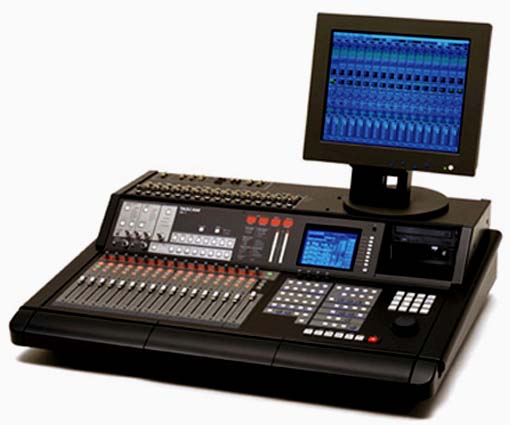

Tascam SX-1
Integrated Audio Production Station





The TASCAM SX-1 is an entire professional-caliber music and audio production studio in an integrated package. Designed to meet all the needs of serious project studios, commercial recording facilities and sound for picture post-production, the SX-1 combines hard disk recording, digital mixing, MIDI sequencing, plug-in effects, advanced DAW-style editing and mastering capabilities.
The SX-1's audio quality has 24-bit resolution and 24-bit ADCs and DACs. Like the MX-2424 Hard Disk Recorder, the SX-1 can use high sampling rates including 96kHz/88.2kHz with half the track and mixer channel count of its standard 48kHz/44.1kHz modes. Its plug-in effects architecture ensures that in addition to its built-in effects by TASCAM, TC Works and Antares, recordists will be able to access a wide variety of third-party effects by other manufacturers. Its wide variety of interfaces allows users to easily interface the SX-1 with other gear in their studios, and its XVGA output means that you can plug a monitor into it and get all the information you need, including sample-level waveform editing of audio tracks, plug-in effects control and much more. Plus, an optional cascade module allows for it to be connected to TASCAM's DM-24 for more digital mixing channels.

• 40 input, 32 x 8 digital mixing console with 100mm, touch sensitive faders, advanced built-in dynamic automation, and 16 high-quality phantom-powered mic preamps.

• Full-function, 48kHz, 24-bit, 16-track hard disk recorder that uses an internal IDE disk drive.

8 tracks of 96khz recording will be possible with a software upgrade following soon after release (converters are 96k). Additional IDE and ultrawide SCSI drives may be connected to the SX-1 via a front-panel slot or a rear panel SCSI interface.

• Highly integrated and intuitive waveform, MIDI, and automation data editing via an internal recording/editing engine that uses the fast, reliable, multimedia-optimized BeIA operating system and an extremely powerful graphics engine.

• Complete surround mixing capabilities with the ability to record a full 5.1 mix to the internal HD in addition to the original 16 audio tracks.

• 128-track MIDI sequencer with advanced editing modes that are available on the fly, with standard and step record modes and highly accurate timing derived from the internal sample clock. Each of the 64 MIDI outputs can be mapped to channel strips on the console, and channel strip faders and knobs can then be assigned to output MIDI channel or custom, user-defined MIDI messages.

• Built-in CD-RW drive for printing stereo mixes, data backup and archiving, and importing sounds from audio or data CDs.

• DSP plug-in technology that offers built-in effects by TASCAM, TC Works and Antares as standard features as well as the ability to add new effects as required.

• Extensive analog, digital, MIDI and computer interfacing that includes (16) balanced XLR inputs, (16) 1/4" TRS line inputs, TRS inserts on each analog input, an onboard speaker switcher, eight channels of ADAT Optical digital interface, two stereo S/PDIF inputs (with sample rate conversion) and outputs, wordclock In/Out/Thru, two MIDI inputs (for MIDI controllers and MIDI Time Code), four MIDI outputs, a SCSI port, two USB ports, a 100Mbits Ethernet jack for FTP capabilities, separate studio and control room monitoring and more.

• Built-in timecode/sync support via SMPTE/LTC, video sync, and Sony P2.

• Expansion slots for 24 more channels of digital I/O (including optional multichannel interfaces for AES/EBU, TDIF, ADAT Optical) or additional analog I/O.

• Onboard LCD screen that offers a wide variety of editing and automation information (including waveforms)

• XVGA output that acts as a complete, stand-alone DAW interface for total control of the machine with no external computer required

• Authors MP3 files

• Jog/shuttle wheel for scrubbing audio and MIDI data simultaneously

• Cascadable with TASCAM's DM-24 Digital Mixing Console to add input channels and interfaces

SX-1 Sequencer Features

General

128 simultaneous track playback

1 MIDI port in (16 channels), 4 MIDI ports out (64 channels)

Support for virtual takes, the number of virtual takes possible is only limited by available disk space

Sample-accurate playback

960 PPQ resolution

Dedicated conductor track

Tempo map support

Piano-roll display in the GUI and on the front panel LCD

Simultaneously record on multiple tracks

Merge/Overwrite/Step record modes

SMF import/export

Event list display and editing of individual events

Bar/Beat/Tick, SMPTE, Real Time, or Sample time format displays and data entry

Transport

Forward and reverse playback

Supports take loading/unload while playing

Supports editing (incl undo/redo) while playing

Unlimited locate points which can be named and recalled from the front panel by number

Can enable/disable conductor track (and tempo map)

Metronome

Countdown, Countdown only, No Countdown modes

Can specify seperate output channel/note/duration/velocity fordownbeat and non-downbeats

Non-Destructive Processing

Quantize during playback

Quantize during live recording

Quantize parameters: Quantize Length, Quantize attacks, releases, or durations, Sensitivity %, Swing, swing strength, Randomize length %

Transpose during playback

Editing

Unlimited Undo/Redo

Editing can be done while playing

Region and individual note selection modes

Lock-to-grid support

Destructive operations (many of which can be done graphically with the mouse in the GUI):
- Cut/Copy/Paste/Erase
- Split tracks based on critera (certain pitch or velocity range, for example)
- Set Velocity
- Constrain notes to velocity range
- Trim velocities by specific amount
- Adjust velocities by a percentage
- Crescendo/Decresendo
- Set start time
- Set Duration
- Randomize Duration
- Quantize
- Transpose
- Repeat
- Reverse
- Insert tempo change
- Insert note
- Insert time signature change
- Insert program change
- Accelerando
- Pencil tool for drawing/editing controller data
- Audition notes while dragging in the GUI

• Remote Control

64 virtual channel strips each containing up to 17 controls that can be mapped to the following types of MIDI messages:
- controller
- channel/poly pressure
- program change
- note
- pitch bend
- SYSEX or user-defined

Channel strip controls can be recorded for MIDI automation purposes


Tascam Italy contac: TEAC tel.(++39) 0266010500 - fax.(++30) 0266010484
