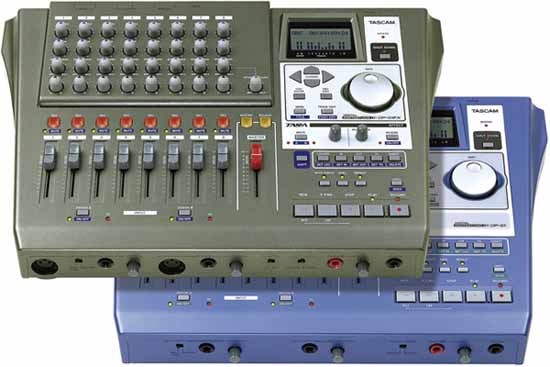

Tascam DP-01/DP-01FX
8-Track Digital Portastudio , hard disk recording

larger size

419,00 Euro

The DP-01 has two microphone inputs on 6.3-mm TRS jacks for dual mono or stereo recording. Up to eight tracks can be recorded at uncompressed CD quality to an internal 40GB hard drive and there is an additional stereo master track for recording a mix. Each channel of the DP-01 has a fader plus dedicated controls for pan, effects send, high EQ and low EQ. For each channel, the user can select the operating frequencies of both the low and high EQs. An LC display shows meters and helps editing settings and locate points. The DP-01 has a USB 2.0 jack for file backup, importing and exporting tracks and transferring mixes to a computer. There are analogue RCA line outputs, an SPDIF optical line output, stereo return, headphone out with level control and a MIDI out for MIDI Timecode or MIDI Clock. Track editing functions include cut, copy, paste, move, erase, silence and multiple levels of undo/redo.
The DP-01FX adds XLR microphone inputs with phantom power for connecting professional condenser microphones, a multi-effects processor for adding effects to an instrument during recording and a reverb processor for adding effects during a mix.

Main Features

8-track recording at uncompressed CD quality

2-track simultaneous recording
Record in stereo or record two independent mono sources

Dedicated stereo mixdown track
Mix your song to a stereo file you can transfer to a computer for CD burning or MP3 encoding

Dedicated controls on each channel for volume, pan, EFX send, EQ high & EQ low
Use real knobs and buttons to change your sound like on an analogue recorder/mixer

Two-band EQ with selectable frequencies per track
Decide for yourself which frequencies the low and high EQ knobs cut or boost depending on your sound sources

Two TRS mic/line inputs, one switchable to Guitar
Plug in and record microphones, synths, guitars, drum machines etc. directly

Two phantom powered XLR microphone inputs (DP-01FX only)
Plug in condenser microphones for a higher recording quality

Built-in reverb processor (DP-01FX only)

Built-in insert effects processor (DP-01FX only)
Process your track with chorus, flange, amp modeling or other effects as you record

Effects send and stereo return
Patch in an external reverb or effects processor

RCA line output
Connect to monitor amplifier/speakers or record your mix to an external recorder

SPDIF digital optical output
Record your mix to a CD or MiniDisc recorder at high quality

Headphone output with level control
Monitor with headphones, or use a Y-cable to connect speakers and control their volume

MIDI output for Timecode or Clock
Synchronize a drum machine or MIDI sequencer to your song

USB 2.0 port for computer backup
Export your mix recording or individual tracks or back up your song to a computer; import individual tracks or restore backed-up songs from a computer

Workstation-style editing: copy, paste, move, erase, silence
Edit your tracks like a pro: tighten your timing, create loops, cut unwanted noise etc.

Built-in 40GB hard drive


Analogue inputs and outputs
Inputs A and B
6.3-mm jack (unbalanced)
  Input impedance
1 MOhm (A only) when switch in GUITAR position
  Nominal input level
  Maximum input level
Inputs A and B
XLR balanced (DP-01FX only)
  Input impedance
  Nominal input level
  Maximum input level
Effect return
2 x 6.3-mm jack (unbalanced)
  Input impedance
  Nominal input level
  Maximum input level
Stereo input (STEREO MIX)
2 x 6.3-mm jack (unbalanced)
  Input impedance
  Nominal input level
  Maximum input level
Line output
2 x RCA (unbalanced)
  Output impedance
  Nominal output level
  Maximum output level
Effect send
1 x 6.3-mm jack (unbalanced)
  Output impedance
  Nominal output level
  Maximum output level
Phones output
6.3-mm stereo jack
  Maximum output
30mW + 30mW (into 30 Ohm)

Digital output
Digital out
TOSLINK Optical digital audio output
  Data format

Audio performance
Frequency response
20Hz - 20kHz, +1dB/-3dB
Signal-to-noise ratio
>85dBA (22kHz LPF)
Total harmonic distortion
<0.05% (1kHz, -10dBV, 22kHz LPF, MASTER fader at nominal)

Power supply and other specifications
External power adapter AC input
100-240V AC, 50/60Hz
External power adapter output
External power adapter output current
Power consumption
Overall dimensions (W x H x D)
452mm x 110mm x 307mm
