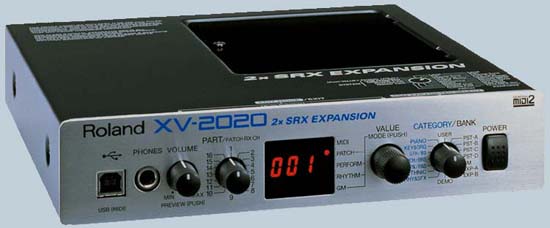

Roland XV 2020
64-Voice Expandable Synthesizer Module

 The XV-2020 64-Voice Expandable Synthesizer Module puts Roland's flagship XV sounds in a half-rack design complete with USB. Expandable via two SRX-Series Wave Expansion Boards, it's like a "plug-in" synth with up to 192MB of sounds, three independent effects processors and intuitive editing software.


Half-rack synth module with 64MB of XV sounds and USB port

64-voice polyphony and 16-part multitimbral operation

Presets include 768 Patches, 17 Rhythm Sets and 64 Performances

Expandable via two SRX-Series Wave Expansion Boards

USB port for easy MIDI connection and control via software

3 independent effects processors: reverb, chorus and 40 multi-effects

Stereo 1/4" and RCA outputs

Includes editing software for Mac or PC


A True XV-Series Synth

At the heart of this half-rack module is Roland's advanced synthesis engine based on a powerful 4-Tone architecture with stereo waveforms per Tone and expressive Matrix Control. There are 1,083 high-quality waveforms in internal memory (equivalent to 64MB), giving the XV-2020 a broad range of sounds that are further enhanced via onboard reverb, chorus and a choice of 40 multi-effects. Edited sounds can be saved to User memory.

Expandable Design

This half-rack module can hold up to 192MB of waveforms by adding two optional SRX-Series Wave Expansion Boards. These boards each contain 64MB of waveforms and hundreds of presets: from grand piano sounds or drums to collection of dance sounds.

Easy USB Connectivity

With its built-in USB port the XV-2020 simplifies everything from MIDI connections to sound editing. Just connect a USB cable from the &endash;2020 to your computer, install the included driver software and you're set. This feature also makes the XV-2020 a companion to laptop-based systems since no external MIDI interface is required. And you get 16-part multitimbral synth .

Editing Software Included

Following Roland's latest trend of integrating hardware and software, the XV-2020 includes a powerful editing program for Mac or PC. Just install the software from the included CD-ROM, make sure the USB cable is connected, and you can edit everything from multimode filters to envelopes and effects, or alter the semi-modular Structure Types, using a sleek graphic interface.
