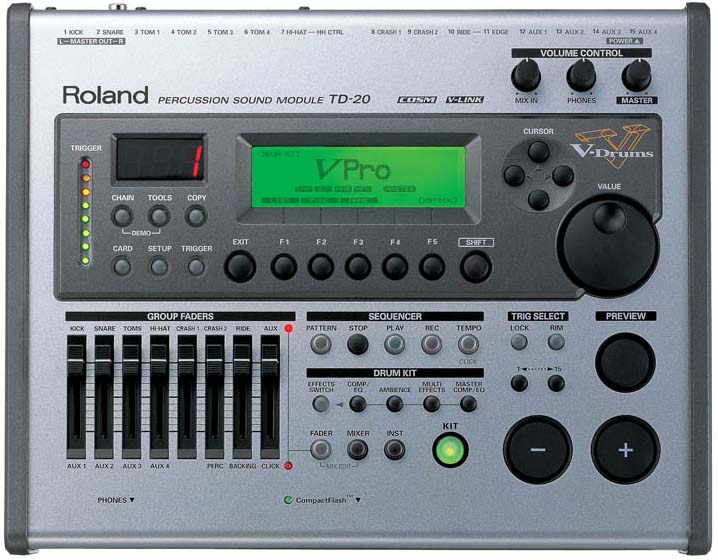

Roland TD 20 Percussion Sound Module  larger size Euro 1,480 This flagship module features over 500 new sounds, all-new sounds, enhanced COSM modeling-based V-Editing (includes modeled snare buzz, kick beater selection, and greater cymbal customizing i.e. size, “sizzle,” mic positions), a new digital output and an expansion slot for future upgrades, improved dynamics and sensitivity, CompactFlash storage and V-LINK (V-LINK requires the Edirol video products like the DV-7PR Digital Video Workstation with software version 1.50 or higher, or P-1 Photo/Audio/MIDI Player, sold saparately), 15 dual-trigger inputs, 10 audio outputs and digital output, 8 group faders and built-in sequencer, Mastering Room and more The CompactFlash slot can be used for storing custom drum kits and sequencer patterns with optional memory cards. An expansion bay located on the underside means there’s room for upgrades . Using an optional DV-7PR Video Presenter from Edirol, drummers can trigger images or change cameras from the pads or kick. Sound Generator Variable Drum Modeling Maximum Polyphony 64 Voices Instruments Drum Instruments: 560, Backing Instruments: 262 Drum Kits 50 Drum Kit Chains 16 chains (32 steps per chain) Instrument Parameters V-EDIT (KICK): Shell Depth, Beater Type, Head Type, Head Tuning, Muffling, Snare Buzz, Mic Position V-EDIT (SNARE): Shell Material, Shell Depth, Head Type, Head Tuning, Muffling, Strainer Adjustment, Mic Position V-EDIT (TOM): Shell Depth, Head Type, Head Tuning, Muffling, Snare Buzz, Mic Position V-EDIT (HI-HAT): Cymbal Size, Add Tambourine, Mic Position, Fixed Hi-Hat V-EDIT (CYMBAL): Cymbal Size, Sizzle Type, Sustain, Mic Position EDIT: Pitch, Decay Ambience Parameters Room Type, Room Size, Wall Type, Mic Position, Room Shape Mixer Parameters Volume, Pan, Minimum Volume, Output Assign Effect Types Pad Equalizer (each pad), Pad Compressor (each pad), Multi-Effects: 14 types, Master Compressor, Master Equalizer, Reverb (for backing part), Chorus (for backing part) Percussion Sets 8 Sequencer User Patterns: 100, Preset Patterns: 100, Parts: 6, Play Type: Oneshot, Loop, Tap, Tempo: 20--260, Resolution: 192 ticks per quarter note, Recording Method: Realtime, Maximum Note Storage: approx. 20,000 Notes, Click Instruments: 20 Display 64 x 240 dots (backlit graphic LCD), 7 segments, 3 characters (LED), Trigger Level Indicator (LED) Faders 8 Preview Button Connectors Trigger Input Jack x 15, Hi-Hat Control Jack (VH-12, FD-7, FD-8), Master Output Jacks (L/MONO, R), Direct Output Jack x 8, Digital Output Jack (COAXIAL), Headphones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo 1/4 inch phone type), MIDI Connectors (IN, OUT/THRU), Foot Switch Jack (1/4 inch TRS phone type), CompactFlash Card Slot, AC Inlet Output Impedance 1.0 k ohms Power Supply AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz) Power Consumption 16 W Accessories Owner's Manual, Power Cord Size and Weight Width 307 mm 12-1/8 inches Depth 256 mm 10-1/8 inches Height 105 mm 4-3/16 inches Weight 2.9 kg 6 lbs. 7 oz.  larger size Contacts Roland Italy: tel.(++39)02937781 , info Brasil e-mail, e-mail Austria Tel.: 0512 264426 , Fax: 0512 266485 , e-mail Canada phone: 604-270-6626, fax: 604-270-6552, e-mail Finland e-mail France Tel : 01.60.07.35.00 , Fax : 01.60.07.35.08 , e-mail Germany 040 526 009 - 0 , e-mail Hungary e-mail Norway e-mail Portugal Tel: 226 080 06, Fax: 226 080 075 , e-mail Spain Tel: 933 081 000 , Fax: 933 074 503 Sweden e-mail |
