FUTURE STYLE









Roland
JUNO D
synthesizer


61-Key Synthesizer with 640 Presets, 20 Rhythm Sets, 47 Effects and D-Beam Control
Mac/PC editing software included







Euro 499,00

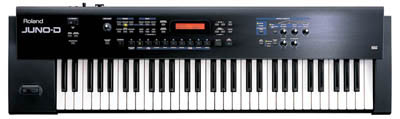

Hundreds of sounds are packed into the Juno-D’s black metal chassis, along with multi-effects, realtime performance controllers, and tools for groove creation and composition.
Affordable 61-note synthesizer with 64-note polyphony, improved keyboard feel, and GM2 compatibility
768 radio-ready Patches, 22 Rhythm Sets, and 40 Performance memory provided
Patches organized in categories such as Piano, Guitar, Orchestra, etc.
Two Tones can be assigned to each Patch, and can be split or layered
47 multi-effects, eight reverb types, 8 chorus types
Powerful arpeggiator, with 400 phrase/arpeggio templates for instant sonic animation
24 Multi Chord memory for one-finger chord triggering; 32 Rhythm Guide metronome with preset patterns and variations
D Beam controller and front-panel control knobs for expressive performance


Composition Tools

The Juno-D is loaded with performance-oriented features including a powerful phrase/arpeggio generator and Multi Chord memory function, which lets you play a chord by touching a single key. You can assign all 12 notes in an octave to play different chords, and then save them as a set. There are several chord sets already stored in the Juno-D at the factory. A Rhythm Guide metronome with real drum sounds is also built in, which includes preset patterns with several variations.

Performance

Improved 61-note, velocity-sensitive keyboard, which is a step up from previous synths in this price range. Bend, twist, and manipulate your sounds in real time with the D Beam controller, pitch/modulation lever, and five front-panel control knobs. For additional control, plug in pedal- and/or footswitches such as Roland’s DP-2, DP-8 Damper pedal, EV-5 Expression pedal, or BOSS’s FS-5U.


Mac/PC editing software included



Specifications

Keyboard


61 keys (with velocity)
Sound Generator

Maximum Polyphony
64 voices

Parts
16 *Two Tones can be assigned to each part (Patch), and can be split or layered.

Wave Memory
32 M bytes (16-bit linear equivalent)

Preset Memory
Original Tones: 640

Preset Patches
640 (Original: 384, General MIDI 2: 256)

Preset Rhythm Sets
20 (Original: 11, General MIDI 2: 9)

Preset Performances
32

User Patches
128 * Two Tones can be assigned to each Patch.

User Rhythm Set
2

User Performances
8
Effects

Multi-Effects
47 types

Reverb
8 types

Chorus
8 types
Rhythm Guide

Preset Patterns
32

Tempo
5 - 300 BPM (with tap tempo function)
Multi-Chord Memory

Preset Chord Sets
16 *12 chord forms are assigned to each set.

User Chord Sets
8 *12 chord forms can be assigned to each set.
Phrase/Arpeggio

Templates
342

User Templates
8

Styles (Variations)
473
Controllers

D Beam Controller
1

Pitch Bend/Modulation Lever
1

Control Knobs
5

Display
20 characters, 2 lines (Backlit LCD)
Connectors


Output jacks (L/MONO, R), Headphones jack, MIDI Connectors (IN, OUT), Hold Pedal jack, Control Pedal jack
Power Supply

Power Supply
DC 9 V (AC Adaptor)

Current Draw
1,000 mA
Accessories


Owner's Manual, AC Adaptor (ACI Series or PSB-1U), CD-ROM (Editor program for PC/Mac)
Options


Pedal Switch: DP-2, DP-8, Foot Switch: BOSS FS-5U, Expression Pedal: EV-5
Size and Weight

Width
1,021 mm
40-1/4 inches

Depth
292 mm
11-1/2 inches

Height
103 mm
4-1/16 inches

Weight
5.0 kg
11 lbs. 1 oz.
(weight excluding AC adaptor)
*The specifications are subject to change without notice.
