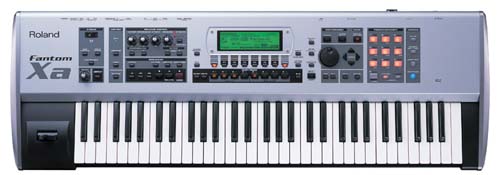

Roland Fantom Xa

Music workstation






euro 1,250




"Fantom Power for the Masses"
multifaceted sampling workstation with an affordable price.

128-voice expandable workstation with brand new patches

Maximum 644 MB wave memory expandability via SRX-Series Wave Expansion Board (1) and DIMM for sampler memory

Maximum 102 minutes mono sampling time when fully expanded

Skip Back Sampling captures phrases you've just played

Intuitive user interface with Part buttons, numeric keys that can act
as Sound Category-select buttons

USB for MIDI communication and file transfer with PC/Mac

V-LINK for controlling Edirol video products





Specifications



Keyboard
61 keys (with velocity)
Sound Generator Section

Maximum Polyphony
128 voices (shared with the sampling section)


Parts
16 parts


Wave Memory
64 M bytes (16-bit linear equivalent)


Waveforms
1,228


Preset Memory
Patches: 768 + 256 (GM2)
Rhythm Sets: 36 + 9 (GM2)
Performances: 64


User Memory
Patches: 256
Rhythm Sets: 32
Performances: 64


Card Memory (PC card)
Patches: 256
Rhythm Sets: 32
Performances: 64


Effects
Multi-Effects: 3 systems, 78 types
Chorus: 3 types
Reverb: 5 types
Input Effects: 6 types
Mastering Effects: 3-band compressor
Sampling Section

Data Format
16-bit linear (File Type: .WAV/.AIFF)


Sampling Frequency
44.1 kHz (fixed)


Maximum Sampling Time
mono: 47 sec. approx., stereo: 23.5 sec. approx.
*When sampling memory isn’t expanded (4 MB)
mono: 102 min. approx., stereo: 51 min. approx.
*When sampling memory is expanded with DIMM (516 MB)


Number of Samples
User memory: 2,000 (maximum total approximately 4 MB)
Card memory: 7,000 (PC card)
Sequencer Section

Tracks
Phrase tracks (16 MIDI channels per track): 16
Tempo track: 1
Beat track: 1
Patterns: 100


Resolution
480 TPQN


Tempo
5–300


Note Capacity
approx. 400,000 notes



Song Length
9,998 measures


Recording Method
Realtime recording, Step recording
Others

Arpeggiator
Preset: 128
User: 128


Rhythm Pattern
Preset: 256 (32 groups)
User: 256 (32 groups)


Chord Memory
Preset: 64
User: 64


Display
240 x 64 dots graphic LCD (with backlit)


Pad Buttons
10 pads (Trigger/Category Selection/Numeric Keys)


Controllers
Pitch Bend/Modulation Lever
Control Knob x 4
Assignable Switch x 2
D Beam Controller


Connectors
Headphones Jack
A (MIX) Output Jacks (L/MONO, R): 1/4 inch phone type
B Output Jacks (L, R): 1/4 inch phone type
Input Jacks (L/MONO/MIC, R): 1/4 inch phone type
Hold Pedal Jack (Half Pedal recognition)
Control Pedal Jack (assignable)
MIDI Connectors (IN, OUT, THRU)
USB Connector (supports file transfer and MIDI)
AC Adaptor Jack


Expansion Slots
• Expansion of waveforms and patches for the internal sound generator
SRX expansion board: 1 slot
• Expansion of sampling memory
DIMM: 1 slot (supports 128 MB, 256 MB, 512 MB (3.3 V))


External Storage Device
PC Card: 1 slot (supports SmartMedia and CompactFlash using
a PC card adaptor)


Power Supply
DC 9 V (AC Adaptor)


Current draw
1200 mA


Accessories
Owner’s Manual
CD-ROM (Editor, USB MIDI driver)
PC Card Protector
AC Adaptor (PSB-1U)


Options
Wave Expansion Board: SRX Series
Keyboard Stand: KS-12
Pedal Switch: DP-2, DP-8
Foot Switch: BOSS FS-5U
Expression Pedal: EV-5
Size and Weight

Width
1,065 mm
41-15/16 inches

Depth
358 mm
14-1/8 inches

Height
114 mm
4-1/2 inches

Weight
10.9 kg
24 lbs. 1 oz.
