Roland

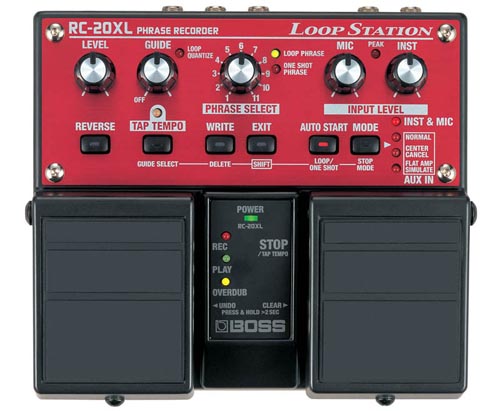

Boss RC-20XL
Loop Station

Realtime Phrase Recording and Sampling






euro 285



Whether for use onstage or at home, the RC-20XL will allow you to layer phrases in real time as many stacks as you like until you fill up the 16 minutes of ample recording space on the RC-20XL.
Sound-on-sound performance capacity by layering your own phrases

Long recording time: up to 16 minutes!

Save up to 11 loops at a time

Undo function makes it easy to create perfect loops

Built-in auto quantize for simple and accurate loop timing

Change loop tempo without changing pitch

Footswitchable loop select (with optional FS-5U/FS-6)


The RC-20XL inherits the same “hands-free” pedal operation from the RC-20: Record, Play, and Overdub can be done with the left pedal , all the while your hands are free to play your instruments. But now you get approximately 16 minutes of recording time to capture and store loops or one-shot phrases (three times that of the RC-20), and you can work your way backward thanks to the new Undo function, a necessity when making mistakes during overdub.

Performance Tools
The RC-20XL has 11 memory tracks, in which you have the choice of storing either one-shot phrases or loop phrases. During your performance, you can switch between the tracks with an optional FS-6 Dual Footswitch, or two FS-5U footswitches (momentary-type). The Undo function can be a useful and musical function for erasing your previous phrase and instantly layering a new one. When you hit the pedal, you can either immediately stop the playback, let the phrase play until the end, or fade it out.

Specifications

Nominal Input Level
Inst: -20 dBu (variable)
Mic: -40 dBu (variable)
Aux In:-10 dBu

Input Impedance
Inst: 1 M ohms
Mic: 1 k ohms
Aux In: 47 k ohms

Nominal Output Level
Output: -20 dBu

Output Impedance
1 k ohms

Recommended Load Impedance
10 k ohms or greater

Internal Memory
Recording time: 16 min.(max.)

Maximum number of saved phrases
11 phrases (max.)

Connectors
Inst jack (1/4 inch phone type), Mic jack (1/4 inch phone type), Aux In jack (StereoÅ@miniature phone type), Phrase Shift jack (1/4 inch TRS phone type), Reverse jackÅ@(1/4 inch phone type), Output jack (1/4 inch phone type), AC Adaptor jack

Power Supply
DC 9V: Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)

Current Draw
120 mA (9 V max.)

Accessories
Owner’s Manual, Dry battery (AA type) x 6, Sound Library for RC-20XL (Sample Phrase CD)

Options
AC Adaptor (PSA-series), Foot Switch (FS-5U)


Size and Weight ( incl. batteries )
Width :173 mm (6-13/16 inches)
Depth: 158 mm (6-1/4 inche
Height: 57 mm (2-1/4 inches)
Weight: 1.2 kg (2 lbs. 11 oz.)
