FUTURE STYLE

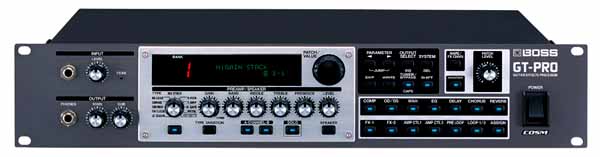

Roland Boss GT pro
Guitar Effects Processor






With a dual COSM effects engine and an expansive I/O section that includes XLR outputs, three sets of send/returns, and a USB port for data exchange and audio flow, the new GT-Pro is a front-end for driving a wall of powered cabinets or for direct, pro-grade recording applications. Useful on stage or in the studio.




Expanded pro-grade I/O section with XLR outs, three sets of send/returns, and a variety of control jacks

Dual COSM Amp engines allows true two-channel operation

Amp channels can be switched, layered, or panned in real-time; Dynamic mode allows channel switching based on picking dynamics

200 preset patches and 200 user patches; 44 effects categories, up to 15 simultaneous FX blocks

User configurable effect chain; any effect can be in any order in the signal path

Solo Switch on the COSM amp section for instant lead tone

Amp Control jack for switching external guitar amp channels

24-bit converters and coaxial digital output for high-resolution recording

Perfect for PC/Mac-based recording and patch management via single USB connection



effects list









Specs


AD Conversion
24-bit + AF method*

DA Conversion
24-bit

Sampling Frequency
44.1 kHz

Program Memories
400: 200 (User) + 200 (Preset)

Nominal Input Level
INPUT: -10 dBu
PRE LOOP RETURN: -10 dBu
LOOP 1/2 RETURN: -10 dBu/+4 dBu

Input Impedance
INPUT: 1 M ohms
PRE LOOP RETURN: 220 k ohms
LOOP 1/2 RETURN: 220 k ohms

Nominal Output Level
DIRECT OUT/TUNER OUT: -10 dBu
MAIN OUT/SUB OUT: -10 dBu/+4 dBu
SUB OUT XLR: +4 dBu
PRE LOOP SEND: -10 dBu
LOOP 1/2 SEND: -10 dBu/+4 dBu

Output Impedance
DIRECT OUT/TUNER OUT: 2 k ohms
MAIN OUT/SUB OUT: 2 k ohms
SUB OUT XLR: 600 ohms
PRE LOOP SEND: 2 k ohms
LOOP 1/2 SEND: 2 k ohms

Digital Output
EIAJ CP1201, S/P DIF

Display
16 characters, 2 lines (backlit LCD)
2 characters, 7 segment LED
INPUT PEAK INDICATOR

Connectors
FRONT PANEL: INPUT jack, PHONES jack
REAR PANEL: INPUT jack, DIRECT OUT/TUNER OUT jack, MAIN OUTPUT jacks L(MONO)/R, SUB OUTPUT jacks L (MONO)/R, SUB OUTPUT XLR CONNECTOR L/R, PRE LOOP SEND jack, PRE LOOP RETURN jack, LOOP 1 SEND jack, LOOP 2 SEND jack, LOOP 1 RETURN jack, LOOP 2 RETURN jack, AMP CONTROL 1 jack, AMP CONTROL 2 jack, EXP PEDAL 1 jack, CTL PEDAL1,2 jack, EXP PEDAL 2/CTL PEDAL3,4 jack, DIGITAL OUT connector (coaxial), USB Connector, MIDI connectors IN/OUT/THRU

Power Supply
AC117V, 230V or 240V

Power Consumption
16 W

Accessories
USB cable
GT-PRO Software CD-ROM
Owner's Manual

Options
MIDI Foot Controller: FC-200, GFC-50, Foot Switch: FS-5U, FS-5L, Dual Foot Switch: FS-6, Expression Pedal: EV-5 (Roland), FV-300L, Foot Switch Cable: PCS-31 (Roland)
Compatible OS

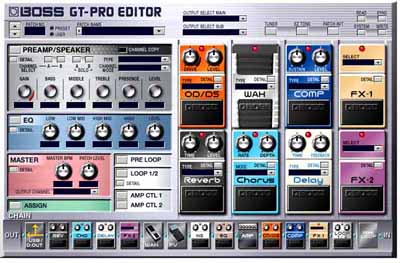

GT-PRO Editor
Microsoft Windows XP Home Edition/XP Professional/2000 Professional/Me/98SE/98, Mac OS X v10.2.3 or later, Mac OS 9.x, and Mac OS 8.6
Size and Weight

Width
482 mm
19 inches

Depth
305 mm
12-1/16 inches

Height
89 mm
3-9/16 inches

Weight
4.8 kg
10 lbs. 10 oz.
* 0 dBu = 0.775 Vrms * AF method (Adaptive Focus method) This is a proprietary method from Roland that vastly improves the signal-to-noise (S/N) ratio of the A/D and D/A converters.
