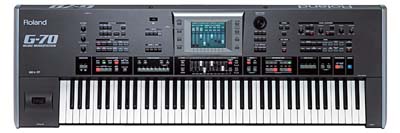

Roland G-70
Music workstation
euro 2,790
The G-70 incorporates concepts and technologies from across the entire Roland product range, resulting in an instrument epitomising the very best of Roland.
Lightening-fast processor, 128-voice polyphony and 6 realtime performance parts.
192 MB WAVE ROM
76 keys Pro-Action Keyboard
The keyboard on the G-70 features a superb weighted Pro-Action, with aftertouch, which has a longer stroke and a natural responsive feel.
The best piano sound derived from Fantom-X
Virtual ToneWheel derived from VK organ
285 Styles
ACV - Adaptive Chord Voicing
The innovation in the arranger section is a new technology called “Adaptive Chord Voicing” (ACV). The technology is based on an intelligent real-time chord voicing for each accompaniment part, which creates a natural arrangement - each instrument in the style plays smooth musical lines instead of jumping to awkward intervals each time the chord is changed.
SRX Expandability
Internal Memory 50MB (Solid State Disk)
DigiScore and Lyrics / Chord display on LCD
Makeup Tools / Cover for Songs and Styles
Vocal Harmonist
The Vocal Harmonist on the G-70 has over 90 different settings and many additional effects and features, including Auto Pitch Correct and Vocoder.
Full 16 track Sequencer / 8 track Style composer with micro editing
can be edited in precise detail using Microscope edit functions.
7 independent effects sections
There are 7 independent effects sections on the G-70, including dedicated sections for the Harmonic Bars, Harmonist and the External Audio Input. Mastering tools derived from the VS Pro Audio range are also included for even greater control.
Full-color Touch Screen
A full-colour touch screen, complete with “click noise” to confirm actions, is also included for quick and simple operation.
The G-70 features a high-quality 4-stave score display, developed from the Atelier and HP-i products, as well as the facility to view chords and lyrics. This chord and lyric information can also be viewed on an external TV screen using the video output.
9 Multi-function Sliders
USB connectivity
For easy file exchange and MIDI transfer to computer
Specifications
 |
|
|
|
|
|
Keyboard
|
| |
|
|
76 key Pro-Action Keyboard with aftertouch
|
|
Sound source
|
| |
Max polyphony
|
|
128 voices
|
|
| |
Tones
|
|
1596 panel tones, 48 Drums kits
Wave memory: 192 MB (16 bit linear equivalent)
|
|
| |
Harmonic Bar
|
|
Based on Virtual ToneWheel technology
|
|
| |
SRX Expansion board slot
|
|
1
|
|
| |
Multi timbre parts
|
|
32
|
|
| |
Effect Processors
|
|
7 dedicated effects processors for:
· Realtime section - 12 Reverb, 6 Chorus / 84 Multi EFX
· Backing(Song/Style) - 8 Reverb, 8 Chorus
· Harmonic Bar section - Rotary, Vibrato and Overdrive
· External Audio Input - 84 effects
· Mic Input - Noise Gate, Comp. 9 Reverb, 9 Delay
· Harmonist section - 9 Reverb, 9 Delay, 9 Chorus
· Mastering section - Parametric EQ, Multi Band Comp.
|
|
| |
Compatibility
|
|
GM2/ GS/ XG Lite
|
|
Styles
|
| |
Preset styles
|
|
285 styles on 12 families
|
|
| |
Variation/ Intro/ Ending/ Fill In
|
|
4 variations/ 4 Intro/ 4 Ending/ 6 Fill In
|
|
| |
Sync Start/ Sync Stop
|
|
Yes
|
|
| |
User Style Composer
|
|
8 Tracks with Micro editing
|
|
| |
Direct Media Link
|
|
Yes
|
|
| |
One Touch Setting
|
|
4 for each Style, programmable
|
|
Cover
|
| |
|
|
For Songs and Styles, 30 ALL, 18 Drum, 24 Bass
|
|
Makeup Tools
|
| |
|
|
For Songs and Styles
|
|
Panel controls
|
| |
Multi-function sliders
|
|
9
|
|
| |
Rotary encoder with push switch
|
|
Yes
|
|
| |
Cursor
|
|
Inc, Dec, Up, Down, Right, Left
|
|
| |
Pitch Bender and Modulation
|
|
Yes
|
|
| |
D-Beam
|
|
Yes, (4 modes)
|
|
| |
Keyboard/ Accomp Balance
|
|
Yes
|
|
| |
External Source Volume
|
|
Yes
|
|
| |
Keyboard Part/ Tone Assign Switches
|
|
Upper1, Upper2, Upper3, Lower1, Lower2, Manual Bass
|
|
Display
|
| |
|
|
Color Touch Screen with click noise
|
|
Player/ Recorder
|
| |
Mark/ Jump
|
|
Yes, 4 location for each song
|
|
| |
Sequencer
|
|
16 track, with micro editing feature
|
|
| |
DigiScore
|
|
Yes
|
|
| |
Lyrics Display
|
|
Yes with Chord Extractor
|
|
| |
Text Import/ Export
|
|
Yes
|
|
Harmonic Bar
|
| |
|
|
Virtual ToneWheel technology
|
|
| |
for Upper1/ Lower1
|
|
9 bars: 16’, 5-1/3’, 8’, 4’, 2-2/3’, 2’, 1-3/5’, 1-1/3’, 1’
|
|
| |
for Manual bass
|
|
2 bars: 16’, 8’
|
|
| |
Percussion
|
|
On, Off, 2-2/3’, 4’, Slow, Fast
|
|
| |
Leakage level
|
|
Min-Max
|
|
| |
Registrations
|
|
8 set
|
|
Vocal Harmonist
|
| |
Mode
|
|
4 Modes: Talk, Voice-FX, Auto Pitch, Singer
|
|
| |
Programmable Harmony
|
|
3 Types: 30 Small, 30 Ensemble, 24 Vocoder
|
|
User Programs
|
| |
|
|
Yes
|
|
Music Assistant
|
| |
|
|
about 500 presets, programmable
|
|
Data Storage
|
| |
FDD
|
|
3.5” HD/DD
|
|
| |
Internal SSD (Solid State Disk)
|
|
about 50 MB
|
|
| |
PC Card Slot
|
|
1 (supports : Compact Flash, Memory Stick, Smart Media, Microdrive, using Card adaptor)
|
|
| |
Type of files managed
|
|
Style, Song(SMF), User Program, MIDI Set, Play List, File.txt
|
|
Other functions
|
| |
Finder
|
|
Song, Style, User Program
|
|
| |
Easy Setting
|
|
Arranger, Organ, Piano
|
|
| |
Chord Alteration System
|
|
Adaptive Chord Voicing
|
|
| |
Melody Intelligent
|
|
Yes, 18 Type
|
|
| |
Tap Tempo
|
|
Yes
|
|
| |
Transpose with Singer Key Adapter
|
|
Yes, -6 ~ +5
|
|
| |
Song Chord Extractor
|
|
Yes
|
|
| |
Fade OUT/IN
|
|
Yes, programmable
|
|
| |
Assignable SW
|
|
Yes, 2 programmable
|
|
| |
V-Link
|
|
Yes
|
|
| |
Updating system
|
|
Yes, on Flash
|
|
Connectors
|
| |
USB
|
|
1, for File transfer / MIDI
|
|
| |
MIDI
|
|
IN, OUT, THRU
|
|
| |
Audio Output
|
|
Main (L/mono, R)‚ Direct (L, R), Vocal Harmonist (L, R)‚ Metronome Output
|
|
| |
Audio Input
|
|
External audio input (L, R), Vocal Harmonist Input (XLR/TRS, Phone balanced/unbalanced)
|
|
| |
Jacks
|
|
1 x Hold Pedal, 1 x Assignable Switch, 1 x Foot Pedal, 1 x FC-7 Control Pedal
|
|
| |
Video Output
|
|
Yes, for Lyrics and Chords (2 types)
|
|
| |
Phones
|
|
1
|
|
Others
|
| |
Supplied accessories
|
|
Owner’s Manual, Power code, Music Rest
|
|
|
Size and Weight
|
| |
Width
|
|
1,295 mm
|
51 inches
|
 |
| |
Depth
|
|
437 mm
|
17-1/4 inches
|
|
| |
Height
|
|
157 mm
|
6-3/16 inches
|
|
| |
Weight
|
|
is to be announced
|
|
|
|
|
|
|
