Roland
FR-7 , FR-5
V-Accordion
These two digital Accordion models integrate digital technology such as new Physical Behavior Modeling (PBM)
into a traditional accordion design.
PBM (Physical Behavior Modeling) enables true sound reproduction and dynamic expression.
This technology uses complex algorithms (as opposed to sampled sounds) to accurately model an acoustic accordion's sound characteristics. The result is a recreation of the actual physical behavior and expressive nuances of an acoustic instrument.
Realistic tone and expressive simulations of a wide range of traditional accordions.
Traditional and orchestral sound combinations can be easily created and played back, complete with full bellows articulation and unique keyboard modes such as Solo, Dual and High/Low. Seven high quality bass sounds can be played separately by the left hand, including: Acoustic Bass, Bowed Bass, Fingered Bass, Picked Bass, Fretless Bass, Bariton Tuba, Bariton Tuba + E.Bass.
22 onboard Orchestral sounds and 7 Orchestral Bass sounds that can be mixed together with traditional accordion sounds.
Portable, lightweight and expandable via MIDI.
With powered speakers.
FR-7 V-Accordion
Euro 4280
 |
|
|
|
|
|
Keyboard & Bellows
|
| |
Right Hand
|
|
41 Keys Piano Type with velocity
|
|
| |
Left Hand
|
|
120 Bass buttons with velocity
|
|
| |
Keyboard Mode
|
|
Right Hand: Solo, Dual, High/Low (for Orchestral Sounds)
Left Hand: Standard, Free Bass
|
|
| |
Bellows
|
|
Real pneumatic detection of bellows pressure, by a high resolution pressure sensor
|
|
Sound
|
| |
Tones: Accordion Set
|
|
30 full programmable
* Each Accordion Sets including:
14 Treble registers
7 Bass registers
7 Free Bass registers
22 Orchestral sounds
|
|
| |
Treble Reed Footages
|
|
7
|
|
| |
Bass Reed Footages
|
|
5
|
|
| |
Chord Reed Footages
|
|
3
|
|
| |
Free Bass Footages
|
|
2
|
|
| |
Orchestral Sounds
|
|
22: Trumpet, Trombone, Alto Sax, Tenor Sax, Clarinet, Oboe, Harmonica, Muted Harmonica, Violin, Pizzicato, Flute, Pan Flute, Highland, Zampogna, Jazz organ, Perc. Organ, Rotary Organ, Term. Organ, Scat Voice, Mandolin, Acoustic Guitar, Acoustic Piano
|
|
| |
Orchestral Bass Sounds
|
|
7: Acoustic Bass, Bowed Bass, Fingered Bass, Picked Bass, Fretless Bass, Bariton Tuba, Bariton + Bass
|
|
PBM (Physical Behavior Modeling)
|
| |
Noises
|
|
Stopping-reed growl
Closing valve noise
Left button noise
|
|
| |
Individual Reed Simulation
|
|
Hysteresis threshold
Expression curve
Pressure variant filter
Pressure variant pitch deviation
|
|
| |
Switching Reed Sound Wave
|
|
By bellows acceleration
By note repetition speed
|
|
Musette Tuning
|
| |
Musette-Micro-Tuning Presets
|
|
16: Off (Standard), Dry, Classic, Mauge, American L/H, North Europe, German L/H, Morn L/H, Alpine, Italian L/H, French, Scottish
|
|
Effects
|
| |
Reverb
|
|
8 Types
|
|
| |
Chorus
|
|
8 Types
|
|
| |
Delay
|
|
10 Types
|
|
| |
Rotary for Orchestral Organ Sound
|
|
Slow/Fast
|
|
| |
"Cassotto" and "Sordina" Simulation
|
|
Yes
|
|
Panel Controls
|
| |
Knob Controls
|
|
Volume, Treble/Bass balance, Reverb, Chorus, Delay
|
|
| |
Encoder
|
|
Data Edit with Enter switch
|
|
Panel Switches
|
| |
Treble Registers
|
|
14 + Master + Orchestra
|
|
| |
Bass Registers
|
|
7
|
|
| |
Navigation Switches
|
|
Up, Down, Menu/Write, Exit/Jump
|
|
| |
Other Switches
|
|
Accordion Set Up/Down, Sordina On/Off, Power
|
|
Others
|
| |
Display
|
|
48 x 84 graphic backlit LCD
|
|
| |
Rated Power Output
|
|
2 x 25 W RMS
|
|
| |
Speakers
|
|
10cm x 2 speakers (using Neodymium Transducer Magnets),
Tweeters x 2
|
|
| |
Onboard Connectors
|
|
Headphone jack (Stereo),
Output jack (Stereo),
Multi Connector (to FBC-7)
|
|
| |
Battery
|
|
Rechargeable Ni-Mh battery pack 24V-4500mAh
|
|
| |
Color Variation
|
|

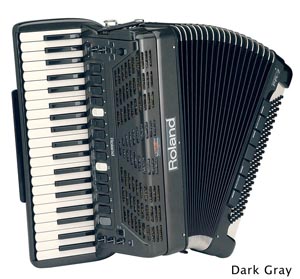

Dark Grey

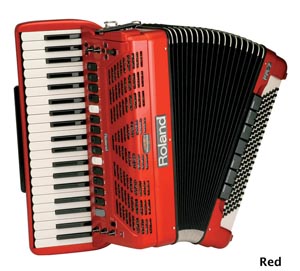

Red
|
|
| |
Supplied Accessories
|
|
FBC-7 (Power supply/Battery Charger), Owner's Manual, Straps
|
|
| |
External FBC-7 Specifications
|
|
5 Programmable Foot switches (Set Up/Down, Register Up/Down, Sustain), Multi connector (towards Accordion), Expression Pedal jack, MIDI connectors (In, Out, Thru), Output jacks (L/Mono, R), AC Inlet
|
|
|
Size and Weight
|
| |
Width
|
|
205 mm
|
8-1/8 inches
|
 |
| |
Depth
|
|
480 mm
|
18-15/16 inches
|
|
| |
Height
|
|
420 mm
|
16-9/16 inches
|
|
| |
Weight
|
|
11.5 kg
|
25 lbs. 6 oz.
|
|
Also available
FR-5 V-Accordion
Euro 3380
|
