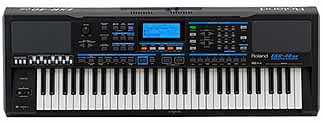

Roland EXR 40 OR
Arranger with on board 592 Panel tones , includingoriental oriental instruments, styles and drum sets



larger size




euro 899



Features

* 64-voice polyphonic sound engine stocked with Oriental instrument samples, rhythm sounds, and styles
* Built-in sound system with bass reflex system and Digital Bass Enhancer
* 16-track sequencer
* 4MB of internal Flash memory for musical expandability
* 8 types of reverb, 8 types of chorus, and 47 MFX
* USB port for MIDI communication and data exchange
* 12 Scale Tuning buttons, plus 3 dedicated memory selection buttons for realtime scale changes
* One-Touch settings





Expandable Styles
The EXR-40 OR is stocked with a library of authentic Music Styles that cover a wide range of Oriental genres. The factory ROM section contains 99 Music Styles, while another 99 Styles are provided in the 4MB Flash memory area.

Performance Features
For quick and reliable access to your favorite sounds, use the row of front-panel User Tones buttons for instant recall. The large backlit LCD ensures that critical sound and song info can be easily viewed. To minimize the number of adjustments during live performance (and to safeguard your settings), the Lock function can be used for Style, Tone, Tempo, Transposition, and Portamento settings.


Oriental Flavors
The 64-voice polyphonic sound engine provides 592 Panel tones (compatible with GM2,GS and XG lite),including a plenty of oriental instruments, and instant Layer/Split capability via dedicated buttons. Twenty-six Drum Sets cover all major genres of oriental and western music. Sounds and Drum Sets can be enhanced further with a digital multi-effects processor (47 types) as well as reverb (8 types) and chorus (8 types effects).


USER TONE Selection
The EXR-40 OR allows you to assign frequently-used sounds to 8 USER TONES buttons. Those assignments are User Program parameters and can therefore change with each User Program you select, if need be.


Expandable Musical Contents
The EXR-40 OR comes with a huge number of Roland-grade Music Styles that cover a vast range of oriental and western genres. The factory ROM section contains 99 Music Styles, another 99 Styles are provided in the 4MB Flash memory area.
That area still has ample room for additional Styles you can load from floppy disk, or copy from your computer's hard disk.

Other Features
*USB for file transfer and MIDI communication
*10W + 10W, two full-range 13 cm speakers with bass reflex system and Digital Bass Enhancer
*12 Scale Tuning buttons, plus 3 dedicated memory selection buttons for realtime scale changes
*One Touch settings: each Style has two different One Touch settings
*Orchestrator: each Style has three different Orchestrator levels (Drum&Bass, Combo, Full Band)
*Music Assistant: 126 registration settings for popular tunes can be selected via the MUSIC ASSISTANT button
*Floppy Disk drive to load and save your data
*16-track sequencer and metronome



Keyboard


61 keys, velocity sensitive
Sound source

Max. polyphony
64 voices

Tones
592 selectable by panel including 56 oriental and 26 drum kits (compatibility with 542 XG and 256 GM2)

Drum Sets
26 Kits including 6 oriental

Multitimbral parts
19

Compatibility
GM2, GS, XG Lite
Panel Layout

Display
New backlit custom display

Tone Select
1~8
Family + Number

Nymeric keypad
0~9

Oriental Scale buttons
12, with LED

Scale Memory buttons
3, with LED
Styles

Styles
99 factory (internal) + 99 changeable (external)

One Touch
2 for each factory Style

Orchestrator
3 levels
Player/Recorder

Realtime SMF player
Yes

16-track sequencer
4 easy modes: All, Count-In, Single, Punch In/Out
User Programs

Memories
200
Effects

Reverb
8 types

Chorus
8 types

Multi-effects
47 MFX types
Data Storage

FDD 3.5"
2HD/2DD
Other functions

Metronome
Yes

Time Signature setting
1/4, 2/4, 3/4, 4/4, 5/4, 6/4,7/4, 8/4, 9/4,
1/8, 2/8 3/8,4/8, 5/8, 6/8, 7/8, 8/8, 9/8

Easy modes
3 (Piano Solo, Piano Mode, Arranger Band)

Music Assistant
126 settings

Melody Intelligence
18 types

V-Link
Yes

Output Power
10w+10w with "Digital Bass Enhancer"

Stereo Speakers
2 x 13 cm
Connections

USB
Yes, MIDI communication and file transfer

Headphones
Yes (2)

Audio Outputs
Yes (L, R)

MIDI
Yes (IN, OUT)
Size and Weight ( Size and Weight )

Width
1,020 mm
40-3/16 inches

Depth
355 mm
14 inches

Height
132 mm
5-1/4 inches

Weight
8.0 kg
17 lbs. 11 oz.
