Los Angeles Winter NAMM 2002

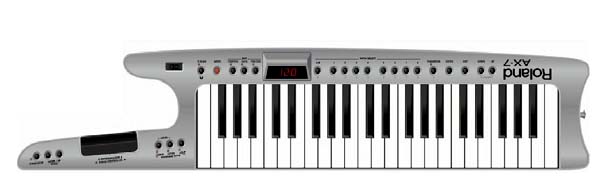

Roland AX-7
Midi Controller Shoulder Keyboard for live players

Building on the design of the AX-1, the new AX-7 MIDI Keyboard Controller offers stage performers more freedom

and expressiveness.Very easy to

use, thanks to a new LED display, expanded patch memory and GM2/GS compatibility.


Stage-oriented shoulder keyboard in pearl white body

45-note velocity-sensitive keyboard, perfect for solos and bass lines

Intuitive operation via new 7-segment LED display

5 realtime controllers: Data Entry knob, Touch Controller, Expression Bar, Hold button and light-sensing D-Beam

128 patches with data backup via MIDI

2 MIDI zones for independent control of Upper/Lower parts

GM2/GS Compatible

Battery or AC powered

Era il 1992 quando Roland lanciava l'AX-1, la master keyboard a tracolla. Ora Roland ha introdotto uno questo nuovo modello con caratteristiche più moderne ma sempre e comunque dedicato ai musicisti live. La nuova AX-7 si presenta quindi con nuove funzioni atte a fornire più flessibilità e comodità di utilizzo. D-beam controller, compatibilità GM2/GS, facile programmabilità grazie al display a 7 segmenti, MIDI IN e OUT e 128 patches totalmente programmabili.


Nuovo design

45 tasti con dinamica

Aftertouch (per mezzo dell'expression bar)

5 controllers D-Beam con nuove funzioni

Display 3 x 7 segmenti

MIDI IN con funzioni di merge, Midi Out

Data backup via MIDI

128 Patches

GS/GM2 compatible

Controllo indipendente di Upper and Lower

Messaggi midi trasmessi: Volume, Expression, Pan Pot, Bender,Modulation, Reverb send, Chorus send ,Delay send, Aftertouch, Mono or Pol mode, Portamento switch, Portamento time, Arranger or Sequencer start/stop, Foot pedal, Damper pedal, CC-00, CC-32, Program Change, Clock TX, Split Point, Transpose status, Transpose value

5 Controllers: Data Entr Knob, Touch Controller (Pitch control) ,Expression Bar ,Hold Button, D-Beam



Alimentazione: Batterie, Adattatore opzionale AC/DC, ACA DC9V

Dimensioni: 1010 (W)x 195 (D)x 102 (H)

Peso: 3 KG

Accessori inclusi: 6 x batterie (AA Type), 1 x cavo midi, Manuale utente

Roland Italy: tel.(++39)02937781 , info
Brasil e-mail, e-mail
Austria Tel.: 0512 264426 , Fax: 0512 266485 , e-mail
Canada phone: 604-270-6626, fax: 604-270-6552,
France Tel : , Fax : ,
Germany 040 526 009 - 0 , e-mail
Hungary e-mail
Norway e-mail
Portugal Tel: 226 080 06, Fax: 226 080 075 , e-mail
Spain Tel: 933 081 000 , Fax: 933 074 503
Sweden e-mail
