The Video Switcher for DVJs
|
euro 450,00
By VSW-1 DVJs are able to mix audio/video content from separate sources without relying upon multiple independent devices or needing another artist in the DVJ booth. The VSW-1 gives performers more freedom in the mix because they can automatically switch video sources (by pressing the red "Auto" button) when using the familiar Fader Start capability found in all of Pioneer’s Pro DJ mixers.

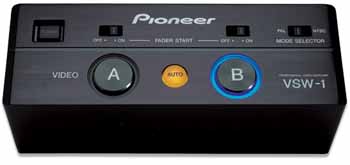

DVJs can also switch manually between video sources, simply by selecting either of the two large buttons (A or B) on the face of the unit. The appropriate button lights up once it has been selected.
This video switcher accepts multiple video connections (component, composite and S-Video) in both PAL and NTSC formats, although it does not convert from one format or connection type to another for output. A Video Sync connection to the DVJ-X1 delivers a professional, flicker-free video source transition.
General Specifications
Power AC110-120V/220-240V
Power consumption 9W
Operating temperature +5°C to +35°C
Storage –40°C to +60°C
Operating humidity 5-85 % R.H. (without precipitation)
Weight 1.4KG
External dimensions 250.0 (W) X 88.0 (D) X 87.5 (H) MM
(excluding connectors, buttons and other protruding parts)
Video Input Section (Input Level/Impedance)
Component video BNC connectors x 3 (2 systems)
Y 1 Vp-p / 75 OHMS
CB/PB 0.7 Vp-p / 75 OHMS
CR/PR 0.7 Vp-p / 75 OHMS
S-Video S connector (2 systems)
Y 1 Vp-p / 75 OHMS
C 0.286 Vp-p / 75 OHMS
Composite video RCA connector (2 systems)
1 Vp-p / 75 OHMS
Video Output Section (Output Level/Impedance)
Component video BNC connectors x 3 (1 system)
Y 1 Vp-p / 75 OHMS
CB/PB 0.7 Vp-p / 75 OHMS
CR/PR 0.7 Vp-p / 75 OHMS
S-Video S connector (1 system)
Y 1 Vp-p / 75 OHMS
C 0.286 Vp-p / 75 OHMS
Composite video RCA connector (1 system)
1 Vp-p / 75 OHMS
Sync Signal Output Section
Sync output
1 Vp-p / 75 W BNC connector (2 systems)
Supported video modulation systems NTSC/PAL
Other Connectors
Control input minijack (3.5 dia) 2 systems
Control output minijack (3.5 dia) 2 systems
|
