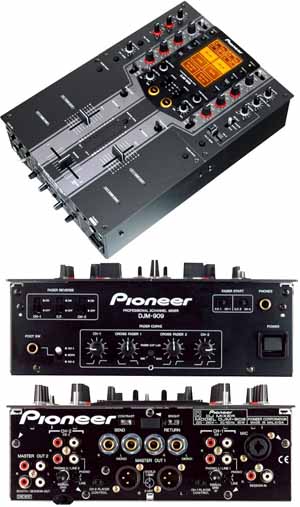

The DJM-909 The most important feature on any battle mixer is its cross fader performance. Pioneer’s DJM-909 introduce a precise and customizable cross fader . It has double fade control allowing each half of the cross fader to be adjusted independently. All fader curves can be adjusted with visual reference on the fader curve adjust screen . The cross fader feel can also be adjusted to your preference (a breakthrough functionality). Each channel fader curve can be adjusted from a smooth volume change to a dynamic volume ON/OFF at the TIP of the channel faders (bottom or top). In turntablist slang, you will be able to crab-scratch the channel faders from either the top end or bottom end of the fader.
Fader Start Sync
DJM-909 can connect with Pioneer’s CDJ series to employ the fader start capability. The user can automatically start or stop playback by the sliding cross-fader or channel-fader. Mixer Layout
Both the DJM-909 and DJM-707 are similar in layout although the DJM-909 boasts built-in effects and a touch sensitive display. Both mixers also offer a clean, open fader area for scratching and beat juggling. DJM-909 has a session line-in with volume control, cueable master output, mic input, and selectable phono / line switches. In addition, the DJM-909 has a tempo tap button, cueable effects switch, and a plug in for foot switch to control effects.
Additional Features of the DJM-909
TOUCH SCREEN AND BUILT IN EFFECTS
A total of fifty different effects incorporated in the DJM-909 can be independently assigned, utilized, & tweaked through the mixers’ user friendly touch screen control. Additional knobs also exist for further parameter adjustments. Revolutionary effect presets range from Fader Synths to Transform and from Touch Phaser to Vocoder. A send/return is also built-in to connect an external effector.
Fader effect can be assigned to a channel fader or cross fader from the touch screen so that the faders are capable of controlling and varying the effect’s parameter simply by moving the cross fader or channel fader.
The Beat Effect is capable of synchronizing effects with the BPM for high accuracy effect timing.
AUTO BPM COUNTER
The mixer is equipped with an auto BPM counter so users can quickly view the track tempo.
Input Terminal (Input Level / Impedance)
CD 1, 2 -14dBV (200mV) / 22k
LINE 1, 2 -14dBV (200mV) / 22k
PHONO 1, 2 -54dBV (2mV) / 47k
MIC -54dBV (2mV) / 3k
SESSION IN -14dBV (200mV) / 22k
RETURN -7.2dBV (437mV) / 22k
Output Terminal (Output Level / Impedance)
MASTER OUT 1 (XLR) 2.2 dBV (1.23V) / 60k
MASTER OUT 2 (RCA) 0 dBV (1V) / 1k
BOOTH/SESSION OUT 0 dBV (1V) / 1k
SEND -14 dBV (200mV) / 1kO
Headphone Maximum Output (Output Level / Impedance)
PHONES 0 dBV(1V)/22
LINE/MIC 20Hz to 20kHz
PHONO (RIAA) 20Hz to 20kHz
CD, LINE 0.02% or less
Cross Talk (1kHz) 70dB or more
Channel Equalizer (LINE/PHONO)
HI -26dB to +6dB
MID -26dB to +6dB
LOW -26dB to +6dB
Mic Equalizer (MIC)
HI -12dB to +12dB
LOW -12dB to +12dB
Power & Physical
Power Requirements Europe - AC 220-240V, 50/60Hz
Power Consumption Europe - 30W
Dimension (W x D x H) 251 x 381.6 x 107.9 (mm)
Weight DJM-909 - 6.5 kg / DJM-707 - 6.3 kg
