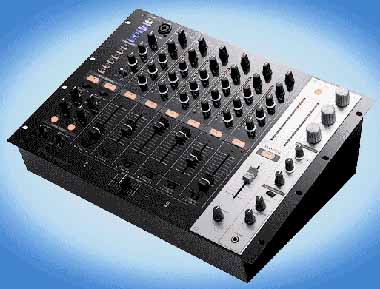

Pioneer DJM-1000


The DJM-1000 will be available from the beginning of April with an anticipated price of €2,500 exc. Iva /Vat

Pioneer Introduces Professional DJ Mixer
The ALPS line faders can be easily changed for rotary versions giving clubs the flexibility to cater for DJs preferences.
Other features of the DJM-1000 include:
3 Mic / 10 Line / 6 phono / 4 Digital / 2 “sound”
19” Rackmount / Tabletop design
Digital Out – Switchable 48 kHz or 96kHz
MIDI Out / MIDI Cross Fader for operation of external equipment
2 Band Booth EQ for equalizing the booth monitor
Fader Start Play for CD player control on ALL 6 channels
3 Band Equalizer (-26dB to +6dB) with Hi, Mid and Low settings in per channel
Master Output Attenuator – rear panel output attenuation of master 1 and 2 O/P’s by 0dB, -3dB, -6dB, -12dB
Peak Level Meters for all 6 INPUT channels AND MASTER OUTPUT to MONITOR levels
2 x Send / Return Channels (PRE/POST & AUX)

The DJM-1000 is easily connectable to traditional DJ equipment as well as other digital devices like samplers, effectors and digital turntables - giving professional DJs uncompromised performance and the flexibility to perform the best possible sets


Input Terminal CD/LINE x 6(RCA), LINE x 4(1/4 inch PHONE), PHONO x 6(RCA), DIGITAL IN x 4 (COAXIAL), MIC x 1 (XLR & 1/4 inch, also be used PHONE), SUB MIC x 2 (1/4 inch PHONE)
Output Terminal MASTER OUT x 2(RCA x 1, XLR x 1), BOOTH OUT x 1(1/4 inch PHONE), HEADPHONE MONITOR OUT x 1(TOP PANEL 1/4 inch PHONE x 1), REC OUT x 1(RCA), DIGITAL OUT x 1(COAXIAL)
Other Terminal SEND x 2(1/4 inch PHONE), RETURN x 2(1/4 inch PHONE x 2), MIDI OUT x 1(5P DIN), DIGITAL LING (SOUND1, 2, EFX1, 2, VISUAL) x 5(MIDI DIN)
Frequency Response 20Hz - 20kHz
Total Harmonic Distortion 0.005% or less
Signal-to-Noise Ratio 95dB(LINE)
Power Source AC 220 - 240V (50/60Hz)
Electricity 54W
Dimensions 428(W) x 363.5(D) x 187.5(H) mm
Net Weight 12.1 kg

more info
Mark Grotefeld
Terry Weerasinghe
+44 (0) 1753 789789
