M-Audio

Audiophile 192

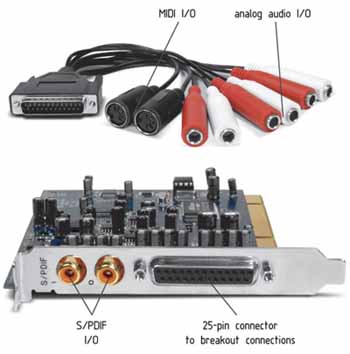

14-in / 4-out Audio Card with digital I/O and Midi






Euro 173,00


Minimum system requirements (Windows)
Pentium 3 – 700 MHz or higher, 256 MB RAM (192 and 96kHz operation)
Pentium 3 – 500 MHz or higher, 128 MB RAM (48kHz operation)
DirectX 9.0b or higher
Windows XP (SP1) or Windows 2000 (SP4)
Available PCI slot


Minimum system requirements (Mac)
GMacintosh G4 733 MHz or higher
512MB RAM
Mac OS X Jaguar (10.2.8 or later) or Panther (10.3.4)



Compatibility

ASIO
WDM
GSIF 2
Core Audio






Features

up to 24-bit/192kHz audio

2 balanced analog inputs (1/4” TRS)

2 balanced analog outputs (1/4” TRS)

S/PDIF digital I/O (coaxial RCA connectors) with 2-channel PCM

SCMS copy protection control

digital I/O supports surround-encoded AC-3 and DTS pass-through
(Windows XP required for Dolby Digital and DTS “pass-through”; Mac OS 10.3.4 required for Dolby Digital and DTS “pass-through” with Apple DVD Player)

direct hardware input monitoring via separate balanced 1/4” TRS monitor outputs

software routing of inputs and outputs

digital I/O can be routed to/from external effects

16-channel MIDI I/O

ASIO, WDM, GSIF 2 and Core Audio driver support for compatibility with most applications

64-bit driver support for Windows

PCI 2.2 compatibility

works with other Delta cards





Specification

sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192


main inputs

max input (balanced): +14.2dBu (4 Vrms)

max input (unbalanced): +14.2dBu (4 Vrms)

signal to noise ratio: -113dB @ 48kHz (a-weighted)

dynamic range: 113 dB @ 48kHz (a-weighted)

THD + N: 0.0006%, 1kHz, -1dBFS @ 48kHz

frequency response: +/-0.1dB, 20Hz to 20kHz @ 48kHz
+/-0.1dB, 20Hz to 40kHz @ 96kHz
+/-0.5dB, 20Hz to 80kHz @ 192kHz

crosstalk: -130dB, 1kHz, channel-to-channel

impedance (balanced): 20k Ohms

impedance (unbalanced): 10k Ohms

main outputs

max output (balanced): +14dBu (3.9 Vrms)

max output (unbalanced): +8dBu (1.95 Vrms)

signal to noise ratio: -108dB @ 48kHz (a-weighted)

dynamic range: 109dB @ 48kHz (a-weighted)
THD + N: 0.0023%, 1kHz, -1dBFS @ 48kHz

frequency response: +/-0.1dB, 20Hz to 20kHz @ 48kHz
+/-0.1dB, 20Hz to 40kHz @ 96kHz
+/-0.5dB, 20Hz to 80kHz @ 192kHz

crosstalk: -105dB, 1kHz, channel-to-channel

impedance (balanced): 300 Ohms

impedance (unbalanced): 150 Ohms
