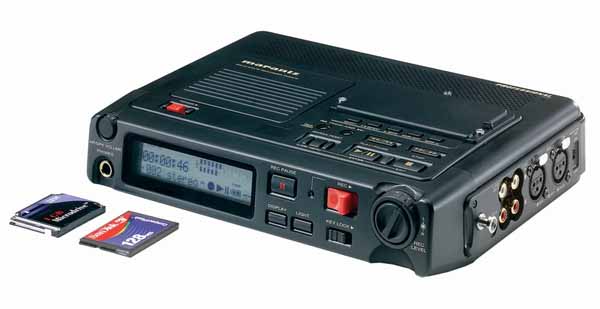

Marantz
PMD670
professional solid state digital recorder





Euro 1000,00 circa


The PMD670 Solid State Recorder features non-stop record with 7 hours of battery life, a menu-driven remote operation, and an EDL marking system for creating new files on-the-fly during the recording for easy file selection during playback. Users are assured a high-quality recording result due to the built-in lock down panels that secure the recording setting switches and media door from accidental changes in-the-field.

Features

Extensive capability
Designed with compatibility for MP3, MP2, BWF, WAV formats the PMD670 boasts 40 assignable quality settings as well as a FAT32 File Allocation Table for future multi-gig file capability.

Simple Operation
With the flip of a switch record audio files to affordable and widely available Microdrives or compact flash cards.

Transfer audio files to computer
A table-top portable model, the PMD670 features a computer I/O connection that allows it to be easily linked for easy file transfer. Drag and drop recorded audio files to your computers hard drive in minutes without the real-time delay disadvantages of cassette, MiniDisc, and DAT recording. The optional PMDEdit software enables easy file Edit , easy file management and editing with its combined use.

Key Features
* Record Directly to Compact Flash Cards
* Easy One Touch Record
* Portable Operation
* No Moving Parts
* MP3, MP2, WAV, BWF Format Compatible
* Over 40 Assignable Quality Settings
* Security for Switch Settings and Media (Door)
* 16-48 KHz Sample Rate Selections
* 32-384 Bit Rate Selectable
* Menu Driven Contact Closure for
* Remote Operation: Start-Pause / Mark EDL/ Unattended Power Up and Record/Create New File
* Digital Input and Output
* Balanced XLR Mic Inputs
* Unbalanced Line In and Out
* +48 V Phantom Power

Optional Accessories

* RB1100 Ni-Cd battery pack
* RB1650 Ni-MH battery pack
* BC600 Battery Charger
* CLC670 Vinyl Carrying Case
* CA200 Hard Shell Attache Case
* PRC600 Reporter style bag
* PRC300 Nylon Carrying Bag

Specifications

  General



  System

Solid State Recorder

  Number of channels

 2 (stereo),1 (mono)

  Usable media

 CF memory cards, Microdrives

  Recording and media methods



  .mp2

MPEG1 Layer II compression

  .mp3

MPEG1 Layer III compression

  .mp3

MPEG2 Layer III compression*



*for all half sample rates

  PCM

16 bit linear PCM

  Power Consumption



  Recording/Playback

5.2 W

  Charging

12 W

  Standby (battery driven)

2.2mW

  Headphone Output power

20 mW/32 ohms

  Speaker Output power

100 mW

  Phantom power

48V, 10mA

  Dimensions (Maximum)



  Width

10.4 in. (264 mm)

  Height

 2 in. (55 mm)

  Depth

 7.3 in. (185 mm)

  Weight

 2 lbs. 14 oz.(1.3 Kg)

  Audio



  Recording bit rate (selectable)



  MP2 stereo

384, 256, 192, 128, 96, 64 kbps

  MP2 mono

192, 128, 96, 64, 48, 32 kbps

  MP3 stereo

320, 256, 160, 128, 80, 64 kbps

  MP3 mono

 160, 128, 80, 64, 40, 32 kbps

  Sampling Frequency



  Analog

48, 44.1, 32, 24*, 22.050*, 16* kHz



*except MP2

  Digital

48, 44.1kHz

  Frequency response (PCM 44.1kHz)

20,000 Hz (-0.5dB)

  Signal-to-Noise Ratio IEC-A Weighted

LINE 86dB

MIC 65dB

  Total Harmonic Distortion at 0 VU (PCM)

LINE 0.03%

MIC 0.08%

  Dynamic Range

86 dB

  Inputs/Outputs



  MIC IN L/R



  Type

XLR (1:GND, 2:HOT, 3:COLD)

  Input Sensitivity

1.2mVrms/6.5 kohms

  LINE IN L/R



  Type

RCA jack

  Input Sensitivity

300mVrms/20 kohms

  LINE OUT L/R



  Type

RCA jack

  Standard Level

2 Vrms max./2 kohms

  DIGITAL IN/OUT



  Type

 RCA jack

  Impedance

75 ohms

  Standard level

0.5 Vp-p

  Sampling frequency

44.1/48 kHz

  Format

SPDIF (IEC-958 Type II)
