FUTURE STYLE

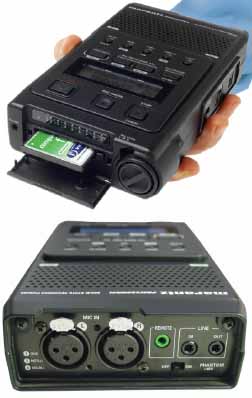

Marantz
PMD660
professional solid state portable digital recorder






Euro 850,00


The Marantz PMD660 is a compact bodied, full-scale digital recorder. It is designed entirely for professionals and includes and XLR microphone input with phantom power and up to 20dB attenuation.
This solid state recorder can record audio files to affordable and widely available Microdrives or CompactFlash cards with just the flip of a switch. Features include non-stop recording with 4 hours of battery life, and an EDL marking system for creating new files on-the-fly during recording for easy file selection during playback.

Highlights

* Record directly to compact flash cards
* Easy one touch record
* Portable operation
* No moving parts
* MP3 (128kpbs)and WAV format compatible
* Three user-determinable preset banks for instant recall of favourite settings
* Automatic Level Control (ALC)
* Security for switch setting and media (door)
* 44.1/48KHz sample rate selection
* RC600 remote available (with REC, REC Pause, Mark controls))
* Balanced XLR Mic inputs
* Unbalanced line in and out
* USB connectivity (for simple transfer to PC)
* 48V phantom power
* AA x4 batteries
* Backlit display
* Built-in mic and loudspeaker



Specification

  General



  System

Solid State Recorder

  Number of channels

 2 (stereo),1 (mono)

  Usable media

 CF memory cards, Microdrives

  Recording and media methods



  .mp3

MPEG1 Layer III compression

  PCM

16 bit linear PCM

  Power Consumption



  Recording/Playback

 40 0w

  Headphone Output power

15mW/32ohm

  Speaker Output power

100mW

  Phantom power

+48V, 5mA

  Dimensions



  Width

 113mm

  Height

 47mm

  Depth

 184mm

  Weight

 0.7Kg

  Audio



  Recording bit rate



  MP3 stereo

 128 kbps

  MP3 mono

 64kbps

  Sampling frequency

 48, 44.1 KHz

  Frequency response

 (PCM 44.1 KHz)



 20,000KHz (-3.0dB)

  Signal-to-noise Ratio IEC-A Weighted

 Line 0.06%

  MIC

 60dB





  Total Harmonic Distortion



  0 VU (PCM)

LINE 0.06%

  MIC

 0.15%

  Dynamic Range

 80dB





  Inputs/Outputs



  MIC IN L/R Type

 XLR (1:GND 2:HOT 3:COLD)

  Input sensitivity

 1.2mVrms/6.5 k ohms

  LINE IN L/R Type

 1/8" jack

  Input sensitivity

 300mVrms/20k ohms

  LINE OUT L/R Type

 1/8" jack

  Standard level

 1.8Vrms/2k ohms
