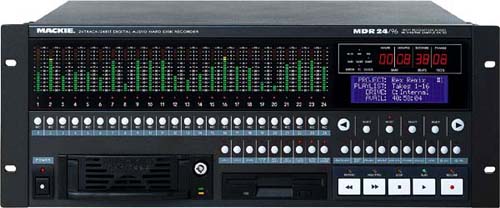

The newest member of Mackie's hard disk recorder family.
Ready with 24 channels of analog I/O, familiar tape recorder style controls, simple operation, 999 Undos, low-cost removable recording and backup drives.
Non-linear recording is nondestructive and uses drive space more efficiently than linear or "tape mode" hard disk recorders. Basic cut, copy, and paste editing is done using the MDR24/96's front panel controls.
For home, project recording, live multi-track recording,
combined with the HDR24/96 Recorder/Editor and Remote 48 controller, the MDR24/96 is an interesting 24-track slave too. Multi-room studios can install MDR24/96's in the 'B' and 'C' rooms and edit those projects on an HDR24/96 in the 'A' room.

Plug and Play Recording

20 GB Internal Recording Drive

Drive Bay for Removable Recording & Backup Media

24 Bit, 48kHz Analog I/O Included

Front Panel Cut, Copy, Paste Editing w/ 999 Undos

Standard features

24 Tracks &endash; 192 Virtual Tracks &endash; for up to 100 minutes of continuous recording

Built-in 20Gb internal disk plus pullout bay for extra Mackie Media removable hard drives

3.5 inch drive bay for importing tempo maps and software upgrades

Full Meter Bridge

Transport Controls, Track Arm buttons, Locate and Loop

24 channels of Analog I/O standard

100 BaseT Ethernet port built-in

Sync to SMPTE, MIDI, and Word Clock & Video Black

Burst

Non-destructive cut, copy and paste editing

999 Undos

Optional

Digital I/O (standard cards) &endash; ADAT / T-DIF, ADAT Optical, AES-EBU

M90 20Gb Recording Drive

Project 2.2Gb Removable

Backup Drive

Remote 24

Remote 48



MDR24/96 Specifications Electronic 1 Frequency response 2 20Hz - 20kHz±0.5dB (2Hz - 20kHz±0.5dB with digital IO cards) Harmonic distortion 0.005% @ 1kHz +14dBU output level (20Hz-20kHz filter) Dynamic range 24-Bit, 115 dB Signal-to-Noise-Ratio (EIAJ), 106 dB Dynamic Range, 128X oversampling Adjacent channel crosstalk 3 -90dBu Digital Quantization 24-bit Sample rates 44.1 kHz / 48 kHz / 96 kHz* Computer Internal CPU 433 MHz Intel® Celeron® w/ 128k internal L2 cache memory Internal RAM 128 MB PC66 SDRAM Ethernet throughput 100kB/sec. Hard Disk Internal Capacity 4 20+ Gig <90 minutes Mackie Mï90 Media Capacity 4 20+ Gig <90 minutes Hard disk seek time 5 9.5 millisecond Hard disk throughput 5 295 megabits/sec. I/O MIDI MIDI IN / MIDI OUT, 15-pin D-Sub (adapter included) I/O continued I/O cards AIOï8 Analog standard (optional digital I/O available) Nominal / Maximum analog input 6 +4dBu / +22dBu AIOï8 A/D Converters 24-bit, 128X oversampling Physical Height 7" / 178 mm (4 RU) Width 19" / 483 mm Depth 13.25" / 337 mm Electrical Operating voltage 120V / 240V / 100 V, 50 /60 Hz Power consumption 50W Optional Remotes Remote 24, Remote 48 Irrelevant Current temperature and humidity temp. - 54° F humidity - 89% Notations: 1 with 24-bit analog I/O 2 48 kHz sample rate 3 0dBu at 1 kHz 4 24 tracks at 48kHz sample rate, your actual time will vary with number of virtual tracks and amount of non-linear editing 5 same for internal and external Mï90 media 6 AIOï8 analog I/O card * with external converters or PDIï8 AES-EBU I/O Cards

This remote control is a tool that not only does it duplicate the entire front panel of the HDR24/96 Recorder/Editor and MDR24/96 Recorde, it also includes a host of unique features not found on the front panel of either unit: a weighted wheel for Jog/Shuttle transport operations and data entry, Autolocator with numeric keypad, Current/Locate time display with visible Cue numbers, System Control, and Record Ready keys for 48 tracks.
Control two HDR24/96s, two MDR24/96s. In addition, this remote is fully interactive with the HDR24/96's SVGA graphic user interface and can be used in parallel with the Remote 24.

---

---
