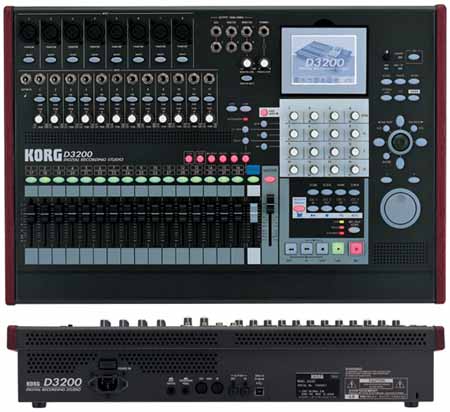

KORG D 3200
digital recording studio
The large number of simultaneous recording tracks and the D3200’s wealth of inputs make it easy to record entire bands or even individually-mic’d drum sets.
The on board CD-RW can also be internally routed to the mixer inputs and used as a CD player.
|
euro 1.740,00
Korg's D-series of digital recording studios have now the new D3200 Digital Recording Studio. It provides up to 32 tracks of simultaneous playback and up to 12 tracks of simultaneous recording to support high channel-count projects such as recording a live band. The mixer section includes 40 input channels plus a set of high-quality effects that employ KORG's "REMS" modeling technology. The completely new and interactive "Session Drums" allow you to create realistic and natural drum track for the entire song, simply by tweaking a few knobs.
Main Features
• Exclusive Session Drums feature works in conjunction with Korg Knob Matrix, allowing you to create realistic drum tracks.
• The recorder engine features uncompressed 24- or 16-bit recording / playback at 48 or 44.1 kHz, with up to 69-bit internal processing.
• Record up to 272 tracks (including 8 virtual tracks per track), all with digital editing functionality.
• Record up to twelve tracks at once, using 12 balanced 1/4” inputs;8 are also equipped with XLR inputs and individual phantom power. A guitar input jack is also provided for guitarists.
• The 12 bus, 44-channel mixer offers a four-band EQ on channel 1 through 24, and a master four-band EQ as well.
• Automated mixing lets you record and play back fader, pan and other mixer events. In addition, 100 scene memories provide more detailed automation. Mixer parameters may also be controlled via MIDI.
• The Knob Matrix, ClickPoint, and cursor keys provide quick operation. The high-resolution 320 x 240 pixel tilt-up LCD uses four-level grayscale shading and backlit illumination for enhanced visibility, providing a clear display.
• A total of eleven high-quality effects can be used simultaneously as inserts, master, and final effects, and are controlled via the Knob Matrix.
• High-capacity 40 GB internal hard drive
• Built-in CD-RW, Master Track and Album CD Project features allow you to produce a production-ready CD .
• USB 2.0 connectivity allows a smooth exchange of data with your computer-based DAW software. Use the PC drive partition on the internal hard disk to share data with your computer.
Quality sound
D3200 provides 16 and 24-bit uncompressed 44.1 or 48 kHz recording and playback. Up to 32 tracks of simultaneous playback and up to 16 tracks of simultaneous recording are possible when recording at 16-bit 44.1/48 kHz. A maximum of 16 tracks can be recorded simultaneously using 12 analog inputs, S/P DIF inputs and the outputs from Session Drums. When using 24-bit 44.1/48 kHz recording, a maximum of 16 tracks can be played back and a maximum of 12 tracks can be recorded simultaneously. By taking advantage of the eight virtual tracks provided for each track, you can record a total of up to 272 tracks.
Thirty-two tracks plus a stereo master track for mixdown (all with 8 virtual tracks per) are provided.
In the 24-bit mode, the digital data passing through the fader and EQ is recorded onto the internal hard drive as 32-bit data, ensuring even higher recording and playback quality. A 40 GB hard disk is standard, allowing approximately 119 hours (16-bit, one track) of recording. The internal processor uses 64-bit precision (maximum 69 bit), delivering professional-level audio quality.
Interactive Session Drums for dynamic drum tracks
It's a built-in Session Drums feature. Using KORG’s exclusive Knob Matrix, simply twist the Group and Session knobs to choose the musical style, and use the Variation knob to select a pattern appropriate for your song. By the Shuffle and Humanize knobs yoy can produce subtle variations in the timing, accent, feel and volume of each drum hit. You can even customize the rhythm sounds themselves. .
Input section
The D3200 can record up to twelve tracks at once, and there are plenty of inputs to go around. An even dozen of 1/4” balanced inputs are teamed with eight XLR inputs jacks featuring high-quality mic preamps and +48V phantom power. Each of the eight phantom power supplies can be switched on/off independentl yto match your condenser and dynamic mics . The D3200 also features optical S/P DIF ins and outs. There's also a dedicated guitar jack. The large number of simultaneous recording tracks and the D3200’s wealth of inputs make it easy to record entire bands or even individually-mic’d drum sets.
Album CD Project and internal CD-RW
The D3200's built-in CD-RW drive can be used to backup/restore songs and user data, to import WAV files, or to create finished audio CDs. When creating an audio CD, you can use the Album CD Project function to easily create a production-ready CD that specifies the song order and even the length of the gaps between songs. The internal hard drive can be partitioned so you can work on multiple album CD projects at once. The CD-RW can also be internally routed to the mixer inputs and used as a CD player.
Computer
The D3200 automatically allocates part of its internal hard disk as a PC (USB) drive (FAT32 is supported – 2, 4 or 8 GB partitions are possible.) . This area can be used to import/export WAV data between the D3200 and a computer DAW program via USB, and can also be used to load system data. High-speed USB 2.0 is supported, so even large amounts of data can be transferred smoothly. In addition, back-up data (on CD) created
by other Korg D-series models (D12, D16, D1200, D1600, D1200mkII, D1600mkII, D32XD, D16XD) or to a PC (D1200, D1600, D1200mkII, D1600mkII, D32XD, D16XD) can also be loaded .
The following data can be loaded: audio data, song name, song protect setting, locate points (1--4), and marks (1--99). When backed-up song data is loaded into the PC drive, the song protect setting is ignored.
Specifications
Recorder Section:
Number of Tracks:
272 tracks (including virtual tracks)
32 tracks simultaneous playback
12 tracks simultaneous recording @ 48 kHz / 44.1 kHz 16-bit, (16 tracks, using 12 analog inputs, S/P DIF and Session Drums™)
16 tracks simultaneous playback
12 tracks simultaneous recording @ 48 kHz / 44.1 kHz 24-bit
Recording Format:
24-bit / 16-bit uncompressed, 44.1 kHz / 48 kHz
Recording Time:
44.1 kHz, 16-bit: maximum 119 hours
*when using a 40 GB hard disk
Number of Songs:
100 songs per drive
Locate Points:
four per song
Mark Points:
100 per song (marks can be named)
Metronome / Drum Patterns:
660
MMC Functions:
Transmitted and received
CD-R/RW Functions:
Internal CD-R/RW, audio CD writing (Track At
Once, Disc At Once), backup / restore, audio file (WAV format) import (ISO 9660), system load
USB Functions:
Backup / restore, audio file (WAV format)
import / export (FAT16 / 32)
system load; USB2.0 supported
PC (USB) Drive Capacity:
2 / 4 / 8 GB
Track Editing:
Copy (overwrite / insert), erase, delete, swap, reverse, optimize, expand / compress, fade, normalize, erase punch noise, erase silence, noise reduction
Song Editing:
Copy, move, delete, rename, protect, save now
Display Format:
Calendar time, HDD remaining capacity, scene, mark, tempo map
Locate Format:
Hour / Min / Sec.ms
Hour / Min / Sec.Frame
Meas / Beat / Tick
MIDI Functionality:
MIDI Functionality:
Mixer control, effect control, MMC transmission / reception, MTC transmission / reception, MIDI Clock transmission
Mixer Section:
Internal Processing:
64-bit (maximum 69-bit)
Inputs:
44 channels (32 recorder channels, 12 sub-in)
Buses:
12 buses; 2 Eff Send buses, 2 AUX buses, 2 SOLO
buses (stereo), 2 CUE buses (stereo), 2 MASTER buses (stereo), 2 MONITOR buses (stereo)
Equalizer:
Recorder channels
1-24: 4-band full parametric EQ, Recorder channels
25-32: 2-band shelving EQ, Sub Mixer channels
1-12: 2-band shelving EQ,
Master track: 4-band full parametric EQ
Scene Memories:
100 scene per song
Effect Section:
Internal Processing:
56-bit
Structure:
8 Inserts (maximum), 2 Masters (maximum),
1 Final; All usable simultaneously at
44.1 kHz / 48 kHz
Programs:
128 presets, 128 users, 32 songs
Algorithms:
52
General:
Display:
320 x 240 pixel, four-level grayscale
movable LCD with backlight
Power Supply:
AC Local Voltage
Power Consumption:
47W
Dimensions:
21.54” (W) x 14.61” (D) x 4.53” (H) /
547 (W) x 371 (D) x 115 (H) mm
Weight:
17.20 lbs. / 7.8 kg
Principal Specifications:
Frequency Response:
10 Hz – 20 kHz ± 1 dB @ fs 44.1 kHz,
+4dBu, 10 kOhm load
10 Hz – 22 kHz + 1 dB/-2 dB @ fs 48 kHz,
+4 dBu, 10 kOhm load
S/N:
103 dB (typical)
Dynamic Range:
103 dB (typical)
THD+N:
0.02 % (typical) 20 Hz – 20 kHz,
+16 dBu, 10 kOhm load
A/D Conversion:
24-bit 64 times oversampling
D/A Conversion:
24-bit 128 times oversampling
Sampling Frequency:
Internal 44.1 kHz / 48 kHz, external 44.1 kHz
± 6 %, 48 kHz ± 6 %
Record / Playback Bit:
16-bit, 24-bit
Analog / digital input and output specifications:
INPUT 1 – 8:
Connectors:
XLR-3-31 type (+48 V phantom power, switchable), 1/4” TRS phone jacks (balanced)
Input Impedance:
4 kOhm (XLR-3-31), 10 kOhm (TRS phone jacks)
Nominal Level:
-60 dBu to –22 dBu @ TRIM = max. – min. PAD OFF
-34 dBu to +14 dBu @ TRIM = max. – min. PAD ON
Maximum Level:
-48 dBu to –10 dBu @ TRIM = max. – min. PAD OFF
-22 dBu to +16 dBu @ TRIM = max. – min. PAD ON
Source Impedance:
600 Ohm
INPUT 9 – 12:
Connectors:
1/4” TRS phone jacks (balanced)
Input Impedance:
10 kOhm
Nominal Level:
-60 dBu to –22 dBu @ TRIM = max. – min. PAD OFF
-34 dBu to +4 dBu @ TRIM = max. – min. PAD ON
Maximum Level:
-48 dBu to –10 dBu @ TRIM = max. – min. PAD OFF
-22 dBu to +16 dBu @ TRIM = max. – min. PAD ON
Source Impedance:
600 Ohm
GUITAR INPUT:
Connector:
1/4” phone jack (unbalanced)
Input Impedance:
10 MOhm
Nominal Level:
-60 dBu to –22 dBu @ TRIM = max. – min. PAD OFF
-34 dBu to +4 dBu @ TRIM = max. – min. PAD ON
Maximum Level:
-48 dBu to –10 dBu @ TRIM = max. – min. PAD OFF
-22 dBu to +16 dBu @ TRIM = max. – min. PAD ON
Source Impedance:
600 Ohm
MASTER OUTPUT L/R:
Connectors:
1/4” phone jacks (unbalanced)
Output Impedance:
150 Ohm
Nominal Level:
-10 dBu
Maximum Level:
+2 dBu
Load Impedance:
10 kOhm or higher
MONITOR OUTPUT L/R:
Connectors:
1/4” phone jacks (unbalanced)
Output Impedance:
150 Ohm or higher
Nominal Level:
-10 dBu
Maximum Level:
+2 dBu
Load Impedance:
10 kOhm or higher
AUX OUTPUT 1, 2:
Connectors:
1/4” phone jacks (unbalanced)
Output Impedance:
150 Ohm
Nominal Level:
-10 dBu
Maximum Level:
+2 dBu
Load Impedance:
10 kOhm or higher
PHONES:
Connector:
1/4” stereo phone jack
Output Impedance:
100 Ohm
Maximum Level:
50 mW @ 32 Ohm
S/P DIF INPUT / OUTPUT:
Connectors:
optical
Format:
24-bit S/P DIF (IEC60958)
USB:
Connector:
Type B
Format:
Slave, USB 2.0 compliant
Supported OS:
Windows Me, Windows 2000 or later, Mac OS 9.0.4 or later.
If using the Windows 98, contact your KORG distributor.
MIDI IN / OUT:
Connectors:
DIN 5-pin x 2
FOOT SW:
Connector:
1/4” phone jack (use separately sold PS-1)
EXPRESSION PEDAL:
Connector:
1/4” stereo phone jack (use separately sold
XVP-10 or EXP-2)
Included Item:
AC cable
|
