8 track recording studio, complete with digital mixing, digital effects including amp simulators and CD mastering. 8 main tracks plus 16 'Ghost' tracks mean you can record different versions of vocals, drum grooves, guitar parts, etc., and choose which of the 8 tracks you wish to reproduce and mix. There’s a built-in ‘Training Mode’ with ‘auto muting’ of sounds at the centre of the stereo mix and slow down of playback without altering pitch; high-gain input stages with balanced XLR / unbalanced jacks, trim control and switchable +48V phantom power; a 2-band EQ with 36 presets; and a 99 ‘mix scene’ memory allowing you to store a complete mix for later recall or scene sequence.
Mastering to CD: bounce tracks 1-6 to a stereo pair with just one button push and add Mastering Effects.

• Uncompressed Recording to Hard Drive
  8 + 16 additional ghost tracks


• Non Linear Audio Editing
  Non-destructive, non linear Copy/Move-Paste / Erase audio editing


• Digital Mixer
  7 x track faders and 1 x Master fader (stereo buss) - all 60mm


• Mic/Line Inputs x 2
  With phantom powered balanced XLRs and unbalanced 6mm jacks. Trim controls, on/off switches and peak LED indicators


• Built-in Digital Channel Effects
  Fostex A.S.P.+ technology with 44 effect types including amp simulations & distortion


• Mastering Libraries
  10 preset Mastering Libraries: Flat, Wet Mix, Light Mix, Live Mix, Pop Mix, Dance, Hard, 70’s, Hall and Lo-Fi modes


• Mastering Mode
  Using tracks 7 & 8 with EQ, compressor and effects


• Equalization
  2-band EQ on channels 1-6 (shelving type) plus 36 EQ presets

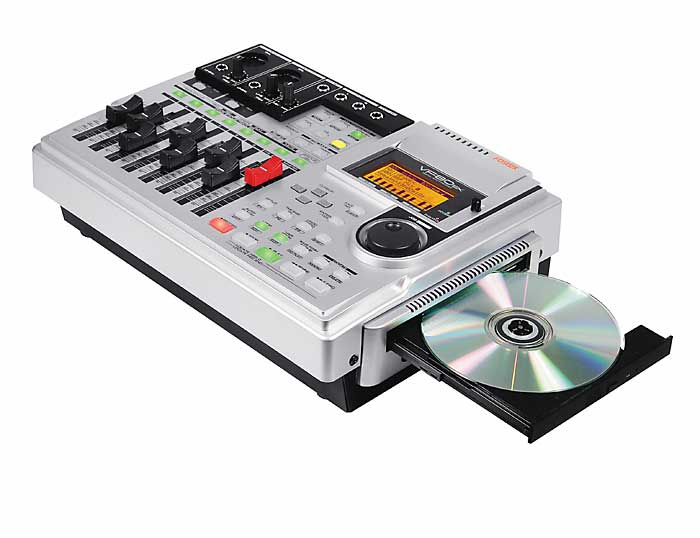

• CD Mastering
  Master to CD-R/RW




• RECORDING / PLAYBACK
  Recording Medium 3.5 inch, hard disk (E-IDE type)
  Recording Format FDMS-3 (Fostex Disk Management System-3)
  Save/Load Format FDIO-1 (Fostex Data In Out-1)
  Sampling Frequency 44.1kHz
  Quantization 16-bit linear (Non expanded)
  A/D Converter 20-bit 64 times, over sampling, Delta-Sigma
  D/A Converter 24-bit 128 times, over sampling, Delta-Sigma
  No. of Recording Track 8 real tracks + 16 additional tracks
  Simultaneous Recording 2 tracks
  Vari Pitch Control +/- 6%
  Crossfade 10msec.
  Frequency Range 20Hz ~ 20kHz


• INPUT / OUTPUT
  Input A, B ø6mm Phone jack (Unbalanced)
  XLR-3-31 type connector (Balanced)
  Input Impedance 50kohm or more (Unbalanced)
  1kohm or more (Balanced)
  Standard Input Level -50dBV ~ +4dBu
  Phantom Power (XLR only) +48VDC (Setting of On/Off
  with Phantom switch)
  Headphone
  Connector ø6mm TRS Phone jack
  Load Impedance 10ohm ~ 50ohm
  Output Level 20mW or more (at 32ohm)
  Stereo Out L, R
  Connector ø6mm Phone jack
  Load Impedance 10kohm or more
  Output Level -10dBV
  Digital In/Out
  Connector Coaxial
  Format IEC 60958 (S/P DIF)
  MIDI In/Out
  Connector DIN 5 PIN
  Punch In/Out 1x ø6mm phone jack


• GENERAL
  Dimensions 307 (W) x 108 (H) x 217 (D) mm
  Weight Approx. 3.3kg
  Power Supply 120VAC 60Hz, 230V~ 50/60Hz
  (AC inlet type)
  Power Consumption 20W
