Emu Desktop Sampling System
Emulator X , Emulator X studio

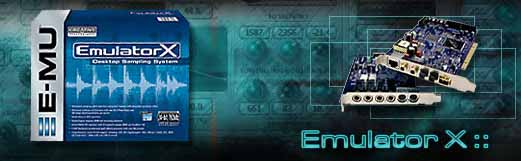

Emulator X






Minimum System Requirements
Genuine Intel Pentium III or AMD K6 class processor or higher operating at 1.5GHz or faster (Pentium 4 at 2.4GHz or faster recommended)
Intel , AMD or 100% compatible motherboard & chipset
512MB System RAM (1GHz or greater recommended)
7200 RPM hard disk
200MB of free hard disk space for minimum installation (3GB needed for full installation)
Windows 2000 SP 4, Windows XP SP 1 or greater
PCI 2.1 compliant slot for E-MU 1010 PCI card
Adjacent PCI slot for E-MU® 0202 I/O daughter card
CD-ROM or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)




Emulator X combines the sound quality, powerful synthesis and filters of E-MU’s hardware samplers with the disk streaming, file management, and interface advantages of software.

Emulator X is a 24-bit/192kHz software sampler with integrated I/O and hardware-accelerated effects for Windows XP and 2000. You can run Emulator X as a VST instrument within your favorite sequencer application or standalone, from RAM or streaming from hard disk.

Automated sample acquisition and preset creation
Emulator X offers intelligent, automated sampling and preset creation from both external audio and batch files, allowing you to turn a .WAV file into a fully functioning preset in seconds with a single click of your mouse.

Advanced synthesis architecture
36 patchcords per voice, over 50 patented Z-Plane morphing filters, multi- wave LFO''s, conditional voice modulation, clock modulation and a host of other synthesis features and parameters. You can even save your favorite synth setups as templates for quick editing.

Standalone or VSTi operation
You can use Emulator X as a VSTi instrument within your favorite sequencer program or run it standalone.

RAM and Streaming playback
Emulator X offers you playback from both RAM and hard disk for total flexibility in optimizing the performance of your system.

24-bit/192kHz PCI interface with 12 inputs, 12 outputs, MIDI and FireWire
Emulator X ships with I/O, featuring mastering-grade 120dB SNR converters, MIDI I/O, FireWire and analog and digital I/O.

E-DSP Multi-effects Processor
The powerful 32-bit E-DSP Processor provides you with an arsenal of hardware-accelerated plug-in effects (over 500 presets) with no CPU overhead, saving your system resources for maximum polyphony and synthesis.

PatchMix DSP
Emulator X ships with PatchMix DSP software that delivers 32 channels of zero latency hardware mixing and monitoring with a flexible virtual patchbay. No external mixer needed.

Integrated waveform editor
Emulator X provides you with a host of professional DSP tools: Gain Change, Time Compression/Expansion, Reverse, Pitch Change, Sample Calculation w/automatic digital tuning, etc.)

Comprehensive sound format support
Emulator X supports EOS, EIII, GigaSampler, Akai, HALion, EXS24, SoundFont 2.1, .WAV and many more sound formats and ships with over 2GB of sounds.

Automated preset cataloging across network drives
Emulator X automatically catalogs and tracks all of your presets across your entire network.

I/O Configuration:
Two 1/4" Balanced Inputs
Two 1/4" Balanced Outputs
24-bit/192kHz ADAT In/Out (switchable to S/PDIF)
24-bit/96kHz S/PDIF In/Out (switchable to AES/EBU)
MIDI In/Out
Firewir e Interface (6-pin)


Specifications


General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depth: 16 or 24 bits
PCI Bus-Mastering DMA subsystem reduces CPU usage
Zero-latency direct hardware monitoring w/effects

Analog Line Inputs
Type: servo-balanced, DC-coupled, low-noise input circuitry
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: +/- .05dB, 20Hz - 22kHz
THD+N (1kHz signal at -1dBFS): -110dB
SNR (1kHz signal at -1dBFS): 120.7dB, A-weighted
Dynamic Range: 121dB, A-weighted
Channel Crosstalk: < -125dB, 1kHz signal at -1dBFS

Analog Line Outputs
Type: Low-noise, 2-pole low-pass differential filter
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: + 0.0/-.35dB, 20Hz - 22kHz
THD+N (1kHz signal at -1dBFS): -105dB
SNR (1kHz signal at -1dBFS): 121.8dB, A-weighted
Dynamic Range: 123.6dB, A-weighted
Channel Crosstalk: < -120dB, 1kHz signal at -1dBFS

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- AES/EBU or S/PDIF format, switchable under software control
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
Firewire:
- 400 Mbps 1394a port (6-pin)
- Compatible with DV cameras, storage peripherals, etc.

Retail Box Contents
E-MU 1010 PCI card
E-MU 0202 I/O daughter card
I/O card cable
Mini-DIN MIDI adapter cables
Quick Start guides for Emulator X and E-MU 1212M
Emulator X Software CD-ROM
Four Emulator X Sounds CD-ROMs
PC power cable
Operation Manual on CD-ROM
Creative Professional Software CD-ROM
- Windows 2000 and XP Drivers
- E-MU PatchMix DSP
- E-MU E-DSP FX Library
Audio software package on CD-ROM

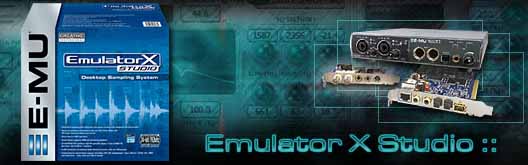

Emulator X Studio




Minimum System Requirements
Genuine Intel Pentium III or AMD K6 class processor or higher operating at 1.5GHz or faster (Pentium 4 at 2.4GHz or faster recommended)
Intel , AMD or 100% compatible motherboard & chipset
512MB System RAM (1GHz or greater recommended)
7200 RPM hard disk
200MB of free hard disk space for minimum installation (3GB needed for full installation)
Windows 2000 SP 4, Windows XP SP 1 or greater
PCI 2.1 compliant slot for E-MU 1010 PCI card
Adjacent PCI slot for E-MU 0202 I/O daughter card
CD-ROM or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)



Emulator X Studio is a 24-bit/192kHz software sampler with integrated I/O, sync interfaces and hardware, accelerated effects for Windows XP and 2000. You can run the Emulator X software as a VST instrument within your favorite sequencer application or standalone, from RAM or streaming from hard disk

24-bit/192kHz PCI interface 18 inputs, 20 outputs, Sync, MIDI and FireWire
Emulator X ships with comprehensive I/O and sync, featuring mastering-grade 120dB SNR converters, two TFPro mic preamps, a turntable input (w/ ground and RIAA preamp), 2 sets of MIDI I/O and a host of other analog and digital I/O, as well as Word Clock, SMPTE and MTC sync.

E-DSP Multi-effects Processor
The 32-bit E-DSP Processor provides you with many hardware-accelerated plug-in effects (over 500 presets) with no CPU overhead, saving your system resources for maximum polyphony and synthesis.

I/O Configuration
Two TFPro Mic/Line/Hi-Z preamps (w/48V phantom power)
Six 1/4" Balanced Inputs
Eight 1/4" Balanced Outputs
Turntable input (w/ground lug and hardware RIAA preamp)
24-bit/192kHz ADAT In/Out (switchable to S/PDIF)
24-bit/96kHz coaxial S/PDIF In/Out (switchable to AES/EBU)
24-bit/96kHz optical S/PDIF Out (switchable to AES/EBU)
Two sets of MIDI In/Out
Four stereo 1/8" Speaker Outputs (configurable from stereo to 7.1)
Stereo Headphone Output
Firewire Interface

Sync Configuration:
Word Clock In/Out
SMPTE In/Out
MTC Out


Specifications

General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depth: 16 or 24 bits
PCI Bus-Mastering DMA subsystem reduces CPU usage
Zero-latency direct hardware monitoring w/effects

Analog Line Inputs (6)
Type: servo-balanced, DC-coupled, low-noise input circuitry
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: +/- .05dB, 20Hz - 20kHz
THD+N (1kHz at -1dBFS): -110dB (.0003%)
SNR (A-weighted): 120dB
Dynamic Range (1kHz, A-weighted): 120dB
Stereo Crosstalk (1kHz at -1dBFS): < -115dB
Common-Mode Rejection (60Hz): > 40dB

Analog Line Outputs (8)
Type: balanced, low-noise, 3-pole low-pass differential filter
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: 0.0/-.35dB, 20Hz - 20kHz
THD+N (1kHz at -1dBFS): -105dB (.0006%)
SNR (A-weighted): 120dB
Dynamic Range (1kHz, A-weighted): 120dB
Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Combo Microphone Preamplifier/Line Inputs (2)
Type: TFPro™ combination microphone preamp and line input
Frequency Response: +0.8/-0.1dB, 20Hz - 20kHz
Stereo Crosstalk (1kHz min gain, -1dBFS): < -120dB
Line Input:
- Gain Range: -12 to +28dB
- Max Level: +17dBV (19.2dBu)
- THD+N (1kHz at -1dBFS, min gain): -94dB (.002%)
- Dynamic Range (A-weighted, 1kHz min gain): 100dB
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 10K ohm
- Common-mode Rejection Ratio (60Hz): > 40dB
Microphone Preamplifier
- Gain Range: +10 to +50dB
- Max Level: -12dBV (-9.8dBu)
- THD+N (1kHz at -1dBFS, min gain): -95dB (.0018%)
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 330 ohms
- Common-mode Rejection Ratio (60Hz): > 80dB

Headphones (stereo)
Type: linear power amplifier
Frequency Response: +0.0/-0.35dB, 20Hz - 20kHz
THD+N (1kHz, max gain)
- 33 ohm load: -70dB (0.032%)
- 600 ohm load: -85dB (0.006%)
SNR (A-weighted): 112dB
Dynamic Range (A-weighted): 117dB
Stereo Crosstalk (1kHz at -1dBFS, 600 ohm load):< -100dB
Maximum Output Power: 500mW
Output impedance: 22 ohms
Gain Range: 85dB

Phono Input (stereo)
Type: RIAA equalized phono input
Frequency Response: +/-0.5dB, 50Hz - 20kHz
THD+N (1kHz, 10mV RMS unbal input): -76dB (.015%)
SNR (10mV RMS unbal input, A-weighted): 90dB
Stereo Crosstalk (1kHz at -1dBFS): < -80dB
Maximum level:
- Professional: 80mV RMS
- Consumer: 20mV RMS
Input capacitance: 220 pF
Input impedance: 47K ohm

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/3 out optical (software switched with ADAT)
- AES/EBU or S/PDIF format, switchable under software control
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
Firewire:
- 400 Mbps 1394a port (6-pin)
- Compatible with DV cameras, storage peripherals, etc.
MIDI
- 2 in, 2 out

Synchronization
Internal crystal sync at 44.1, 48, 96, 192kHz
External sample rate sync
- ADAT
- S/PDIF (opt. or coax)
- Word clock (75 ohm termination, switchable)
SMPTE LTC Timecode
- Converts between longitudinal time code (LTC) to MIDI time code (MTC)
- Regen, stripe, and conversion modes
- 24, 25, 30 drop, 30 non-drop frames/sec
- Compatible with 29.97 fps timecode
- Input level: 0.5 - 4V p-p
- Output levels: +4dBu, -10dBV (software selectable)
- Input Impedance: 10K ohms


Retail Box Contents
E-MU 1010 PCI card
E-MU AudioDock M
E-MU Sync daughter card
EDI (E-MU Digital Interface) cable (3 meters)
Sync cable
Mini-DIN MIDI adapter cable
Headphone splitter cable
PC power cable
Quick Start guides for Emulator X and E-MU 1820M
Emulator X Software CD-ROM
Four Emulator X Sounds CD-ROMs
Operation Manual on CD-ROM
Creative Professional Software CD-ROM
- Windows 2000 and XP Drivers
- E-MU PatchMix DSP
- E-MU E-DSP FX Library
Audio software package on CD-ROM
