Small Music Devices based on a simple idea:one musician, one instrument, one connection:
The DVForge philosophy is to create tiny, convenient products that interconnect one instrument, one microphone, one channel of sound.

Turn any FM Radio Into A Guitar Amplifier


DVForge has mulitple patents pending on a variety on inline, single-channel, plug-in devices that connect an instrument, a microphone, or another music device to either an analog or digital cable.
To build a miniature practice aid that plugs into the output jack of an electric guitar or bass, and that transmits a radio signal that lets any nearby FM stereo receiver become an on-demand amplifier. Make it so that the signal is strong and clean, and so that a musician can take advantage of any stereo system, at home or in a vehicle, for use as an practice amp.

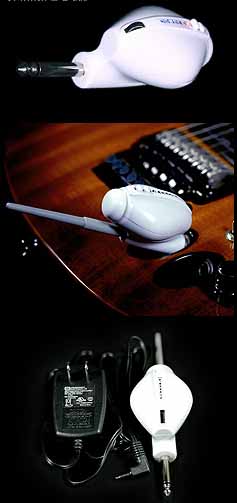

The same tiny size as DVFrge original JamPlug miniature guitar amplifier, the JamPlug FM replaces the built-in amp function of the earlier product with a strong, clean FM radio transmitter. It lets you use any FM radio receiver as an on-demand guitar amplifier. In your car or truck, , with any home stereo system, the JamPlug FM reliably transmits the signal from your electric guitar of bass, so that the stereo system picks it up and plays it.
The JamPlug FM is not just a toy. The FM transmitter section of the product has been specifically engineered by DVForge to give the kind of quality you require for playing your musical instrument. While any FM transmitter can experience some hiss, the JamPlug FM has the best performance possible, given the realities of FM radio. With six easily selectable channels, it is easy to find an open frequency, tune the stereo to that frequency, and start playing your guitar or bass 'on the radio.'
The JamPlug is injection molded from durable bright-white ABS plastic, and is designed to last a lifetime. It has a 1/4" instrument plug (for your guitar or bass), a pushbutton selector switch for tuning to any of six built-in frequencies, an on-off button switch, and a thumbwheel-style volume control. It operates for hours on its built-in rechargeable battery, and it includes its own small AC wall charger. The JamPlug FM works with all electric guitars and electric bass guitars.

Using The JamPlug FM

Basic operation is simple. Just plug the JamPlug FM into your guitar or bass, set the levels, select an open FM channel, tune your radio to the same channel, and start playing.
The JamPlug sets up much like an analog tube amp. There's even the least little bit of "tube hiss" in the sound, as well as available overdrive distortion. To get the sound you want, just experiment with setting the output levels from your guitar or bass, and the gain level on the JamPlug, just like with a normal guitar amp.

JamPlug FM Specifications:

Width= 1.2"
Length= 3.5" (plus plug length)
Height= 1.8"
Stations= 6 FM
Power= 120VAC, 60Hz
Battery= Internal rechargeable
Antenna= removable, uses 3.5mm miniplug

GuitarPlug and MicPlug
USB Audio Adapters For Your Mac

To build small USB audio adapters for Mac OS X users that plug right into the output jack of an electric guitar, bass, or dynamic mic and that convert the analog signal output to a high quality USB audio signal, for sending to a computer USB audio input.
With more Mac owners using recording software, like Apple's GarageBand or Logic, to build music tracks at home, DVForge realized that an entirely new approach was called for to connect instruments and microphones to the computer, something much smaller and simpler than anything else that's available. DVForge patent-pending approach to creating small, but high quality digital interface products has resulted in the GuitarPlug and the MicPlug, for connecting an electric guitar or dynamic microphone, respectively, to any Mac system with OS X using a simple USB cable.

Plug In Your Guitar

The GuitarPlug is the device for connecting your electric guitar or bass to an OS X Mac, for home recording, or even for live play-through. It works with single or double coil pickups, with active pickups, and with any audio software that accepts a 16-bit, 48KHz USB audio signal. This product is good enough for any professional use in either live performance or recording.

Plug In Your Microphone

The MicPlug is built for connecting your dynamic microphone to an OS X Mac, for home recording, or for live play-through. It has an XLR connector, and works with any OS X audio software that accepts a 16-bit, 48KHz USB audio signal. The clarity and cleanliness of the the analog to digital conversion, and the low-latency are good enough for professional recording usage.

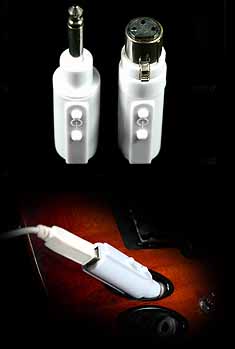

Both GuitarPlug and MicPlug are cylindrical, 2.3" by .7" in size, are USB bus powered, have an on-off switch, and have a blue LED power indicator. They convert mono analog audio to 16-bit, 48KHz better than CD-quality digital USB audio, and are class compliant, plug and play devices. They work with any Mac music software that specifically accepts a 48KHz/16-bit USB digital audio input. They are specifically built to work with Apple's music software, including Logic, Logic Express, and GarageBand.
The GuitarPlug has a 1/4-inch guitar plug for use with any analog electric guitar or bass, and the MicPlug has an XLR plug for use with any dynamic stage microphone. Both have a sturdy on-off pushbutton switch, and are powered directly from the attached USB cable, with no battery needed. Both are ruggedly made devices intended for serious use by serious musicians.

GuitarPlug & MicPlug Specs

Width= .7"
Length= 2.3" (plus plug length)
Height= 1.8"
Bit depth= 16-bit
Sample Rate= 48KHz
Compatible= Mac OSX 10.2.8+ with no audible latency (under 10ms)
Compatible= Not For Use With MS Windows
Voltage= 5VDC from USB bus
Freq Response= 20Hz - 22KHz
Jack= USB Type "B"

Latency Note: Latency in DVFore hardware is inaudible (under 3ms). Total latency on your system will depend upon the USB system in the specific Apple computer and software you are using. In OS X 10.2.8 or higher, using GarageBand, Logic, or Logic Express, the total latency is still inaudible (under 10ms). Your actual total latency will depend on your overall setup.

more info DVForge, Inc.
DVForge, Inc.
83 Industrial Park Drive
Hendersonville TN 37075 USA

Tel: +1 (615) 822-9270
Fax: +1 (615) 822-2790
e-mail Music Products
