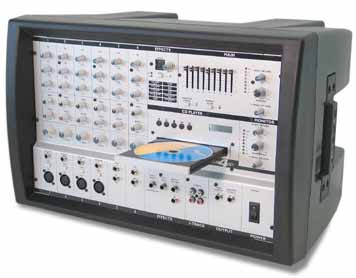

Alesis GigaMix 4CD
Portable powered Mixer
with Built-in CD Player

euro 580,00

4 channels (plus two summed stereo channels) and 200 Watts/4 ohms
Four high-gain mic/line (XLR and 1/4” balanced) inputs with phantom power
Two line input channels with dual, balanced 1/4” inputs

28-bit digital effects built in
100 onboard preset effects including reverbs, delays, chorus, flanging, pitch and multi-effects
Internal DSP allows faster setup and greater portability without need to patch in external effects

Channel and output EQ
3-band active (+/- 15dB) EQ on every channel
Master 9-band graphic EQ

High-quality mic preamps
Switchable phantom power
Huge 60dB of microphone gain
Switchable 75Hz highpass filters

Built-in CD player
Independent Main and Monitor volume controls

Each GigaMix includes 100 28-bit digital effects, 3-band active EQ on all input channels, high-pass “rumble filter” on main outputs, post-fader effects send and return for external effects, master tape send and return for recording and playback, and footswitch input for effects bypass.

The GigaMix 4FX features 4 channels XLR mic and 1/4” line inputs plus two channels with stereo line inputs. There is a single 9-band graphic EQ and 200 Watts of power with mono main output.


Channel and output EQ
3-band active (+/- 15dB) EQ on every channel
Dual 9-band graphic EQ (single on 4FX)
EQ all instruments individually, main output, and monitor output (except 4FX)
High-quality mic preamps

Switchable phantom power
60dB of microphone gain
Switchable75Hz highpass filters

Impact-resistant molded PPE chassis
Dual recessed handles
Mixer, effects, and power amp all in one unit


Amp Config: Mono Main Output
Amp Power: 200 Watts/4 ohms
Mic/Line Inputs: 4
Dedicated Line Inputs: 2
Weight: 40.5 lbs
Dimensions: 20"H X 26.5"W X 17.5"D
Master Graphic EQ: 1x 9-Band EQ on Main; 8-Segment LED Level Meter
Effects: 28-bit Effects, 100 Effect Types
Channel EQ: 3-Band Active (+/-15dB) EQ on all Input Channels
Frequency Response: 10Hz-40kHz (+0.5/-3dB)

Additional Features

Rugged, Impact Resistant Molded PPE Chassis
48v Phantom Power on all Mic Inputs
3-Band Active (+/-15dB) EQ on all Input Channels
High- Pass "Rumble Filter" on Main Outs
Post-Fader Effects Send (per-Channel) and Return, for External Effects
Master Tape Send and Return for Recording
Footswitch Input for Effects Bypass
