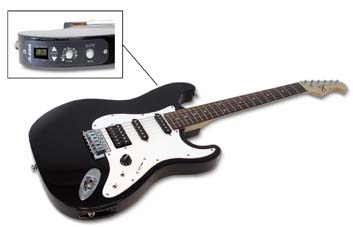

Alesis XGuitar
with Alesis DSP technology built in

Useful for stage, studio or practice, the new X Guitar by Alesis harnesses the power of hundreds of pedals for the guitarist seeking that special sound. The X Guitar is a full-scale electric guitar that features 80 editable guitar presets in one professional package, including headphone and line outputs. All of the presets can be user-configured using the 9 effect modules and 8 different signal routing possibilities.

XGuitar Specifications

80 Programs, each a factory preset that can be edited by the user or restored to factory default
9 effects modules, each with multiple selectable effects, over 40 different effect types
8 different signal routing options for re-ordering effect modules

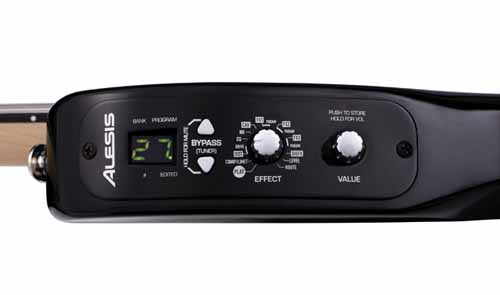

Simple Up/Down Toggle switch to facilitate program changes on-the-fly
Built-In Auto-Chromatic Tuner
Pickups- 1 Dual Humbucker, 2 Single Stack Humbuckers, Strings- 10 Gauge
Bolt-on neck
Expression Pedal Input
Battery Power Operation (4-AA Batteries)
AC Power Optional
Stereo/Headphone Output on 1/4” TRS Connector
Simple Up/Down Toggle switch to facilitate program changes on-the-fly
Weight: 7.5 lbs
Dimensions: 11.5” x 39” x 3” (W x L x D)


80 programs, 9 effects modules and 8 different signal routes
Built-in headphone out
28-bit effects- Delays, amp, and cabinet models, chorus, transposition
EQ, Noise reduction, flanger, reverb rotary speaker
Built-in digital tuner
One humbucker and two stacked single-coil pickups, plus a five-position pickup selector switch
Master volume and two tone controls
30 hours of operation (on 4 AA alkaline batteries)
Input for expression pedal
