Wooden side panels
32 knobs , 35 buttons , 69 LEDs
32-voice polyphony with 16-part multitimbral capability
1024 programs (256 User / 768 ROM / 128 Multi)
Undo/Redo/Random features to defeat "oops" and "writer's block"
4 oscillators per voice. 3 main plus one sub (when all oscillators are in use, polyphony may decrease, but not by more than 6 voices).
Sawtooth, variable pulse, sine, triangle + 62 additional spectral waves
FM (Frequency modulation) with or without external Input signals
2 filters selectable as lowpass, highpass, bandpass or bandreject
4 filter configurations (serial/ parallel) for up to 6 poles (36 dB)
3 LFOs with 68 LFO shapes
Loop or Envelope LFO modes with midi clock sync
2 ADSTR envelopes (T=Time)
16 independent arpeggiators with numerous arpeggiator patterns and real time parameter
access/modulation including swing & note length.
98 simultaneous DSP effects: Reverb (w. pre-delay sync to MIDI-clock) , 3-Band EQ per program/part (low/hi shelf + parametric mid) , Retro Phaser [6-stage stereo phaser with 24 filter-poles , Multiple independent distortion/saturation/Lo-fi FX per voice, including multiple, distortion/shaper characteristics and variable gain. Chorus/Flanger with rate sync to midi tempo. Simple or "Groove" Delay (preset polyrhythmic patterns), 32-band advanced vocoder , Ring Modulator , Analog Boost for true vintage tonal characteristics
2 Soft Knobs, individually assignable per program
Internal master clock that drives all arpeggiators, LFOs and delay times; automatic sync to external midi clock
Advanced Modulation Matrix with 6 source and 9 destination slots.
Complete control via MIDI (CC/Polypressure/Sysex) with "Adaptive Control Smoothing" for ultra soft parameter changes and no zippering.
MIDI Tempo sync capabilities for virtually every time-based parameter
Full 24-bit processing; 24 bit D/A, 18 bit A/D
6 individual high quality outputs
2 audio inputs to process your signals through synth filters, envelopes, FX, vocoder, FM, ring modulator, and more
Flexible "auxiliary" model of internal audio routing for processing/reprocessing internal/external signals through the synth engine and and effects of other voices
Surround sound capabilities
Free SoundDiver Virus editor/librarian for Windows and MacOS
Easy operating system updates via MIDI
External power supply
Dimensions: 470 x 185 x 75 mm
Weight: 2.85 kg, 4.6 kg with packaging

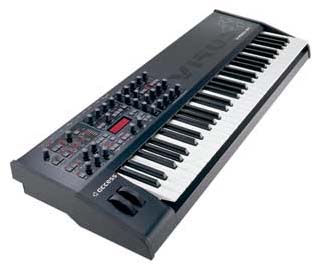

High-quality, semi-weighted, velocity and aftertouch capable, 61-keys
Internal Power Supply
Pitch bend, modwheel and two jacks for switch/expression pedals
Real Wood side panels
Dimensions: 975 x 351 x 112 mm
Weight: 13kg, 16.5 kg w. packaging
